InfineonDatasheet (PDF)

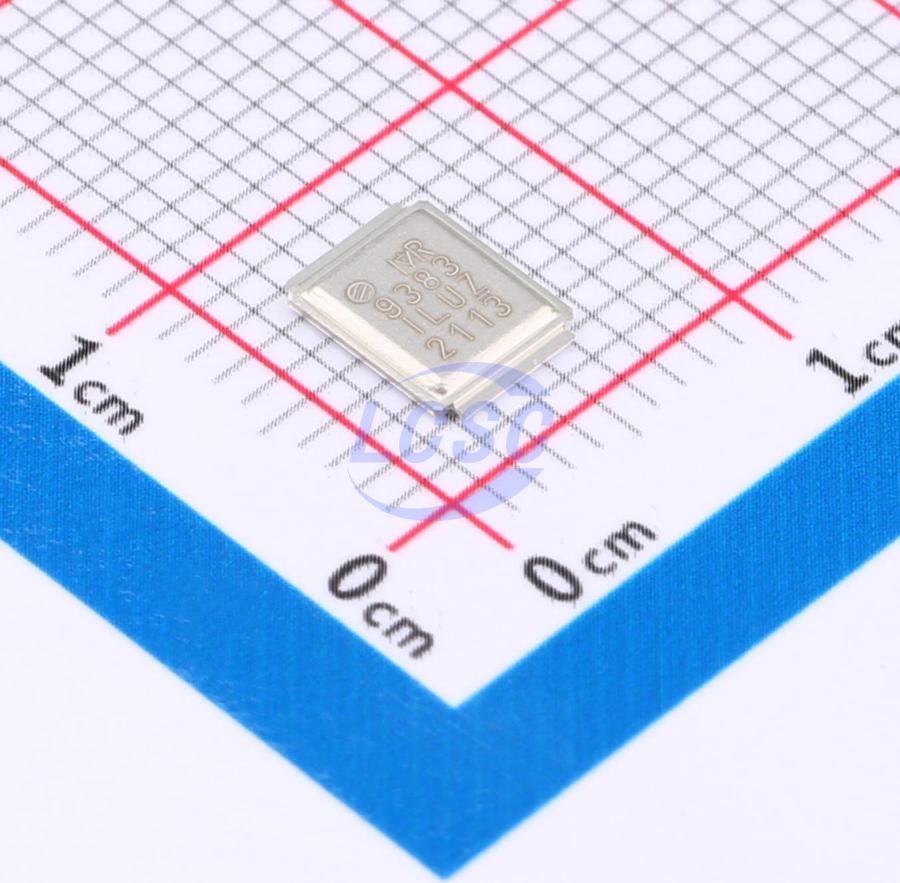

IRF9383MTRPBF
P-Channel 30V 22A 160A 2.1W 113W Surface Mount MG-WDSON-5
MG-WDSON-5ROHS3 CompliantActive
MOSFET P-CH 30V 22A 160A MG-WDSON-5
- Manufacturer
- Infineon
- Manufacturer part #
- IRF9383MTRPBF
- Store part #
- C537848
- Package / case
- MG-WDSON-5
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C537848
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹239.25 | ₹239.25 |
| 10+ | ₹233.60 | ₹2,336.00 |
| 30+ | ₹230.12 | ₹6,903.60 |
| 100+ | ₹226.43 | ₹22,643.00 |
1 × ₹239.25
₹239.25
excl. GST
₹282.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,800 per reel
IRF9383MTRPBF
₹239.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.78nF
- Ciss-Input Capacitance
- 7.305nF
- Pd - Power Dissipation
- 2.1W;113W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 22A;160A
- Reverse Transfer Capacitance (Crss)
- 1.03nF
- RDS(on)
- 2.9mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 130nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
The IRF9383MTRPbF combines the latest HEXFET P-Channel Power MOSFET Silicon technology with the advanced DirectFET packaging to achieve the lowest on-state resistance in a package that has the footprint of a SO-8 and only 0.6 mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques, when application note AN-1035 is followed regarding the manufacturing methods and processes. The DirectFET package allows dual sided cooling to maximize thermal transfer in power systems, improving previous best thermal resistance by 80%
Applications
- Isolation Switch for Input Power or Battery Application
- High Side Switch for Inverter Applications
Key features
- Environmentaly Friendly Product
- RoHs Compliant Containing no Lead, no Bromide and no Halogen
- Common-Drain P-Channel MOSFETs Provides High Level of Integration and Very Low RDS(on)
