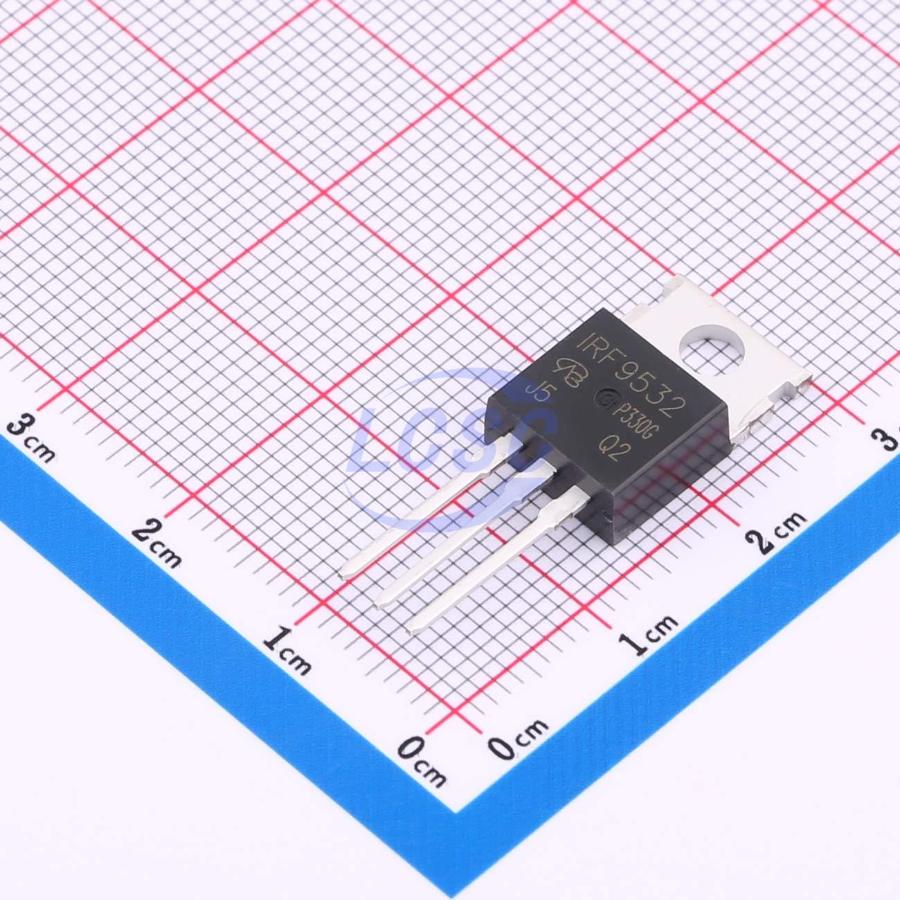

IRF9532PBF-VB
P-Channel 100V 18A 1.1W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 100V 18A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9532PBF-VB
- Store part #
- C19711296
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C19711296
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹66.39 | ₹663.90 |
| 50+ | ₹58.40 | ₹2,920.00 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF9532PBF-VB
₹82.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.46nF
- Pd - Power Dissipation
- 1.1W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 167mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.03 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP15P10PH-VB#C22389090VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹82.56 · 4 in stock | View |
 | IRF9530NPBF-VB#C558155VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 393 | ₹99.74 · 393 in stock | View |
 | IRF9530PBF-VB#C5878812VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 24 | ₹80.45 · 24 in stock | View |
 | IRF9541-VB#C19711253VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹85.92 · 10 in stock | View |
 | FQP8P10-VB#C45662525VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 47 | ₹98.62 · 47 in stock | View |
