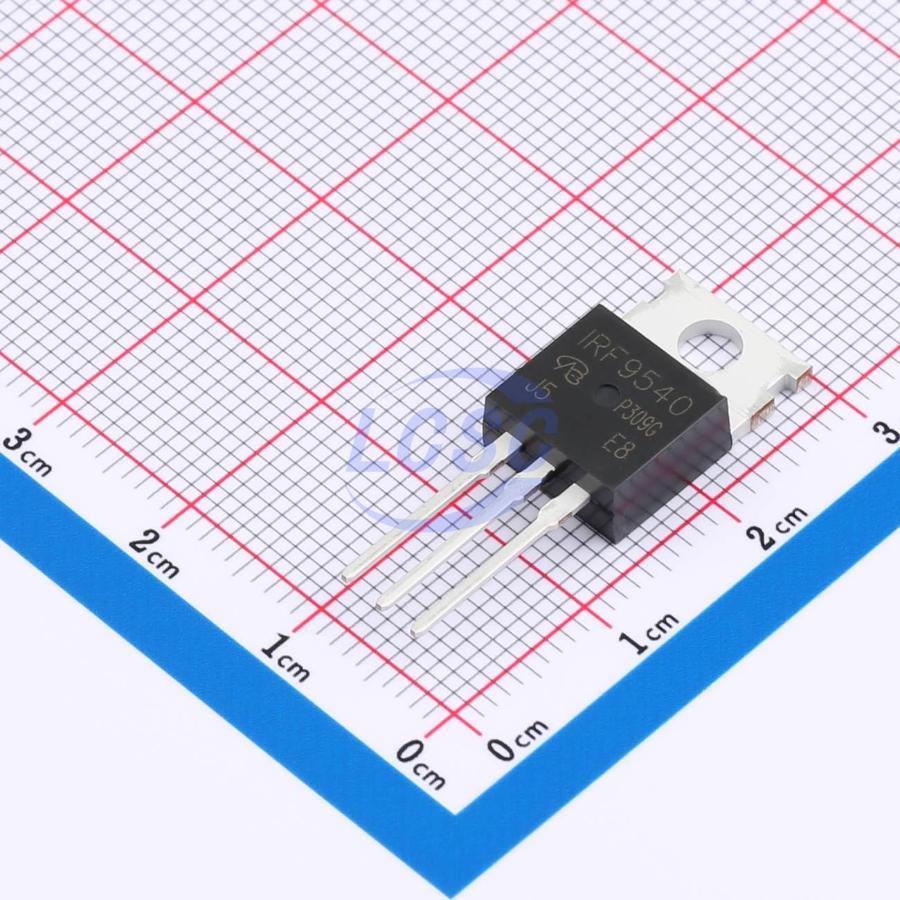

IRF9540PBF-VB
P-Channel 100V 18A 11.7W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 100V 18A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9540PBF-VB
- Store part #
- C18795037
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C18795037
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.83 | ₹100.83 |
| 10+ | ₹84.10 | ₹841.00 |
| 50+ | ₹60.42 | ₹3,021.00 |
| 100+ | ₹52.15 | ₹5,215.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹100.83
₹100.83
excl. GST
₹118.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF9540PBF-VB
₹100.83 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.46nF
- Pd - Power Dissipation
- 11.7W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 167mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.695 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UTT25P10L-TA3-T-VB#C19711365VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹85.92 · 20 in stock | View |
 | MTP8P08-VB#C20417619VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹85.92 · 5 in stock | View |
 | VBZM12P10#C700701VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 58 | ₹81.64 · 58 in stock | View |
 | IRF9510PBF-VB#C18212619VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 95 | ₹104.50 · 95 in stock | View |
 | UTT25P10L-VB#C693287VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 373 | ₹86.23 · 373 in stock | View |
