VBsemi ElecDatasheet (PDF)

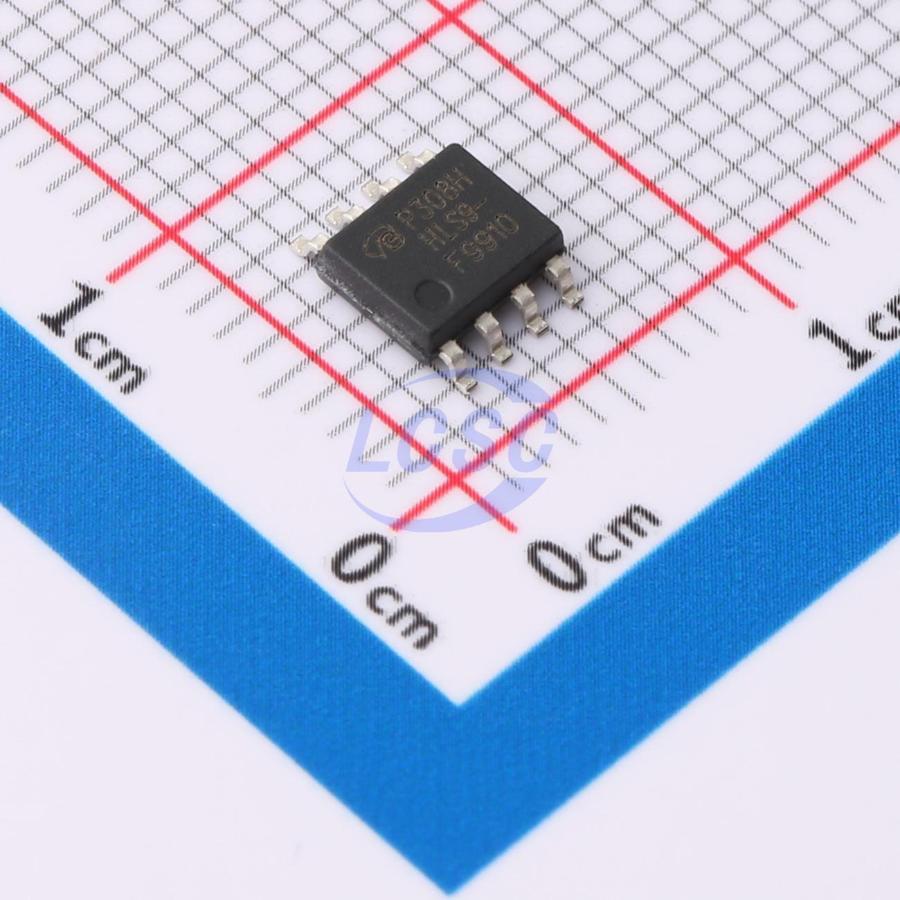

IRF9910TRPBF-VB
N-Channel Array 20V 10A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 20V 10A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9910TRPBF-VB
- Store part #
- C7463489
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C7463489
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.72 | ₹56.72 |
| 10+ | ₹44.56 | ₹445.60 |
| 30+ | ₹39.33 | ₹1,179.90 |
| 100+ | ₹32.82 | ₹3,282.00 |
| 500+ | ₹29.99 | ₹14,995.00 |
| 1,000+ | ₹28.26 | ₹28,260.00 |
1 × ₹56.72
₹56.72
excl. GST
₹66.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF9910TRPBF-VB
₹56.72 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 9mΩ@4.5V;12mΩ@2.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Applications
- Set-top box
- Low-current DC/DC
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% UIS tested
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
