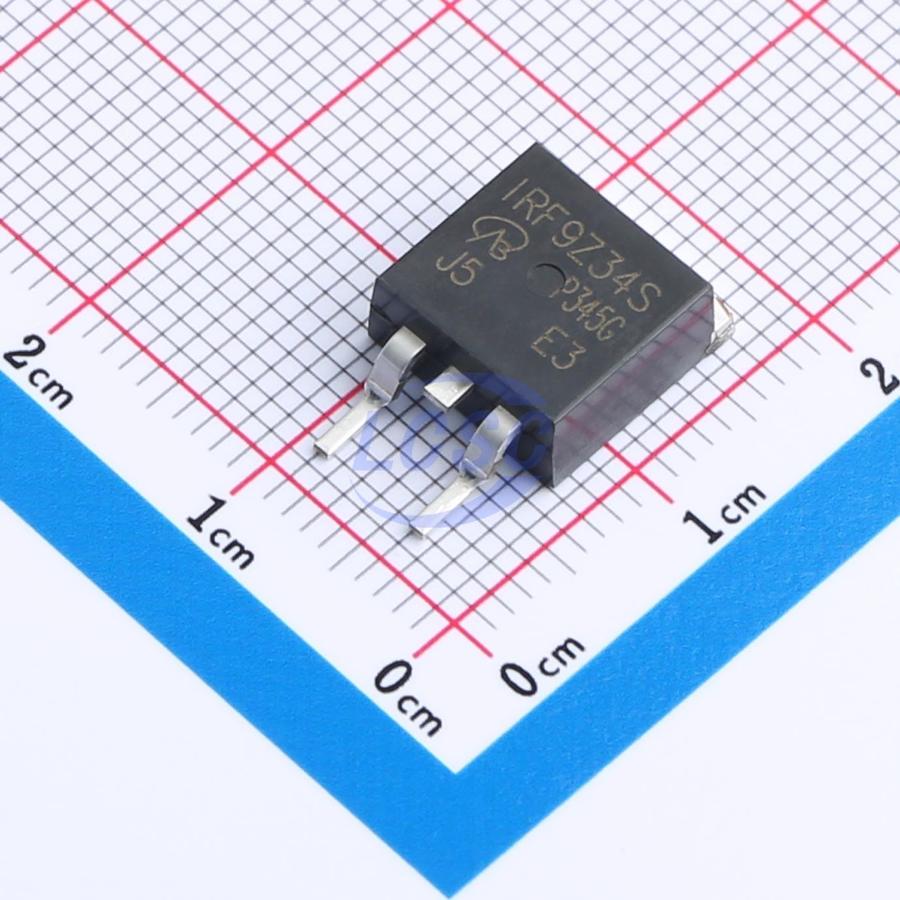

IRF9Z34SPBF-VB
P-Channel 60V 30A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 60V 30A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF9Z34SPBF-VB
- Store part #
- C19626751
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C19626751
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.11 | ₹114.11 |
| 10+ | ₹93.43 | ₹934.30 |
| 30+ | ₹83.10 | ₹2,493.00 |
| 100+ | ₹72.99 | ₹7,299.00 |
| 500+ | ₹66.96 | ₹33,480.00 |
| 1,000+ | ₹63.73 | ₹63,730.00 |
1 × ₹114.11
₹114.11
excl. GST
₹134.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF9Z34SPBF-VB
₹114.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1nF
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 64mΩ@10V;77mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.46 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET with 100% single-pulse avalanche energy tested
