InfineonDatasheet (PDF)

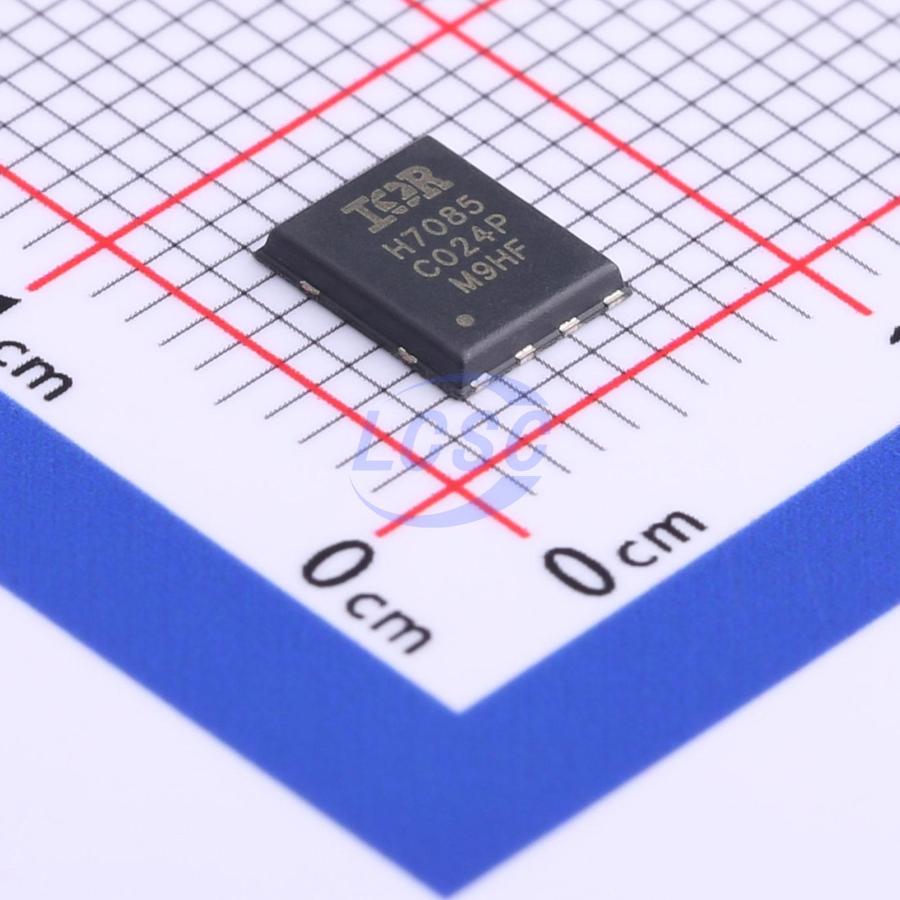

IRFH7085TRPBF
N-Channel 60V 147A 156W Surface Mount PQFN(5x6)
PQFN(5x6)ROHS3 CompliantActive
MOSFET N-CH 60V 147A PQFN(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFH7085TRPBF
- Store part #
- C520643
- Package / case
- PQFN(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C520643
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹196.33 | ₹196.33 |
| 10+ | ₹164.18 | ₹1,641.80 |
| 30+ | ₹146.51 | ₹4,395.30 |
| 100+ | ₹126.49 | ₹12,649.00 |
| 500+ | ₹117.55 | ₹58,775.00 |
| 1,000+ | ₹113.71 | ₹1,13,710.00 |
1 × ₹196.33
₹196.33
excl. GST
₹231.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRFH7085TRPBF
₹196.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 560pF
- Ciss-Input Capacitance
- 6.46nF
- Pd - Power Dissipation
- 156W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 147A
- Reverse Transfer Capacitance (Crss)
- 380pF
- RDS(on)
- 2.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 165nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.199 g
Overview
Applications
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- DC/DC converters
- DC/AC Inverters
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant
