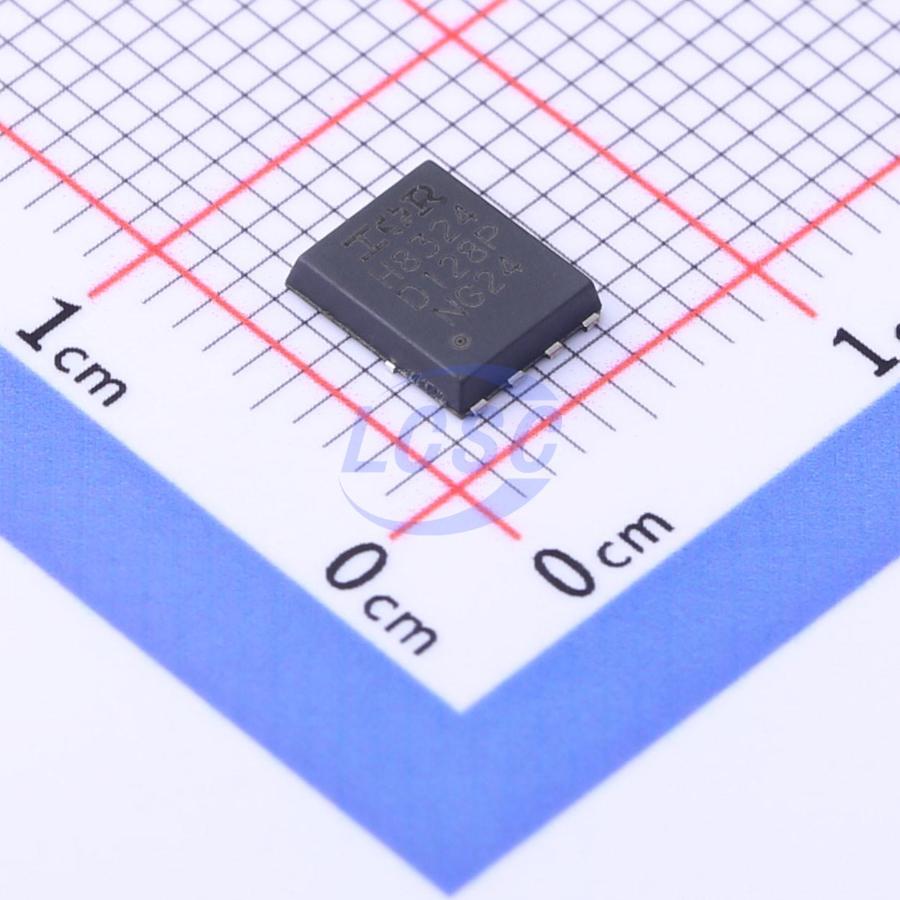

IRFH8324TRPBF
N-Channel 30V 23A 90A 3.6W 54W Surface Mount PQFN-8(5x6)
PQFN-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 30V 23A 90A PQFN-8(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFH8324TRPBF
- Store part #
- C537903
- Package / case
- PQFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C537903
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.86 | ₹55.86 |
| 10+ | ₹54.76 | ₹547.60 |
| 30+ | ₹54.11 | ₹1,623.30 |
| 100+ | ₹53.46 | ₹5,346.00 |
1 × ₹55.86
₹55.86
excl. GST
₹65.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRFH8324TRPBF
₹55.86 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 500pF
- Ciss-Input Capacitance
- 2.38nF
- Pd - Power Dissipation
- 3.6W;54W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 23A;90A
- Reverse Transfer Capacitance (Crss)
- 205pF
- RDS(on)
- 4.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.35V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
Applications
- Synchronous MOSFET for high frequency buck converters
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLH5034TRPBF#C538147Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 4 | ₹256.86 · 4 in stock | View |
 | IRFH5302TRPBF#C148153Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 6,951 | ₹101.87 · 6,951 in stock | View |
 | IRFH7446TRPBF#C148277Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 2,397 | ₹96.88 · 2,397 in stock | View |
 | IRFH5300TRPBF#C2763849Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 1,927 | ₹88.20 · 1,927 in stock | View |
 | VBZQA120N03#C700742VBsemi Elec · PQFN-8(5x6) | VBsemi Elec | PQFN-8(5x6) | 17 | ₹150.65 · 17 in stock | View |
