VBsemi ElecDatasheet (PDF)

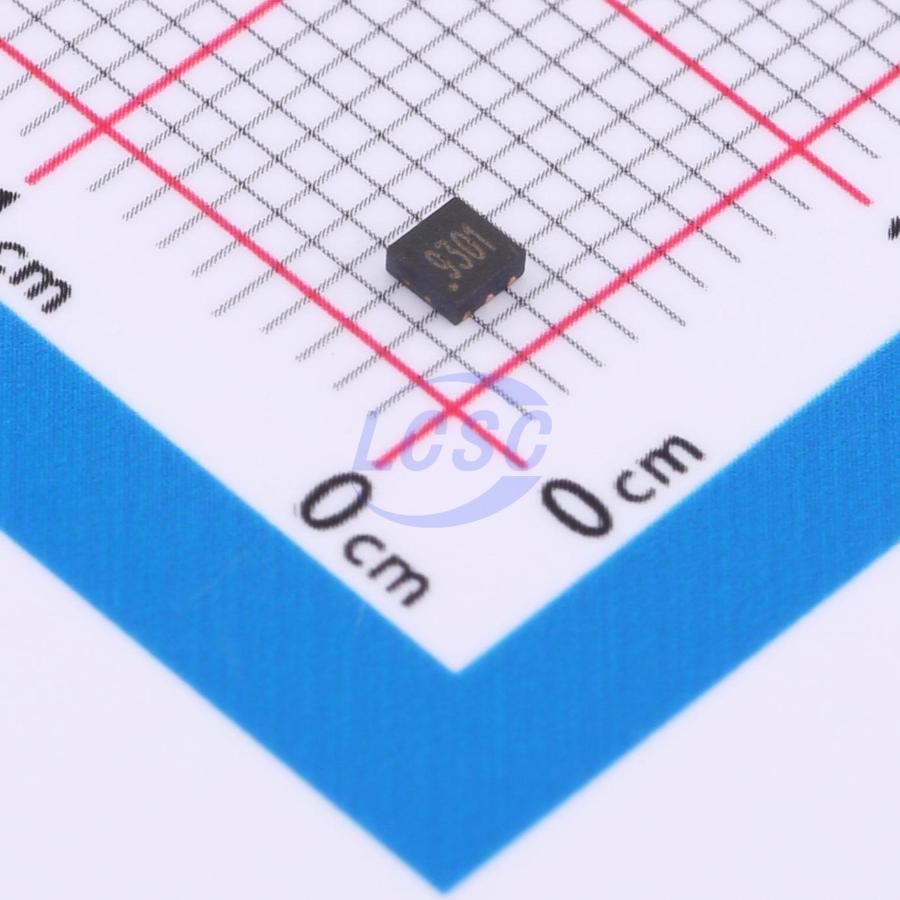

IRFHS9301TRPBF-VB
P-Channel 20V 10A 3.3W DFN2x2-6-EP
DFN2x2-6-EPRoHSActive
MOSFET P-CH 20V 10A DFN2x2-6-EP
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFHS9301TRPBF-VB
- Store part #
- C7463915
- Package / case
- DFN2x2-6-EP
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7463915
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.49 | ₹89.49 |
| 10+ | ₹73.32 | ₹733.20 |
| 30+ | ₹65.33 | ₹1,959.90 |
| 100+ | ₹57.35 | ₹5,735.00 |
| 500+ | ₹47.89 | ₹23,945.00 |
| 1,000+ | ₹45.38 | ₹45,380.00 |
1 × ₹89.49
₹89.49
excl. GST
₹105.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRFHS9301TRPBF-VB
₹89.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 3.3W
- Reverse Transfer Capacitance (Crss)
- 370pF
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23nC@6V
- Gate Threshold Voltage (Vgs(th))
- 400mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.072 g
Overview
Applications
- Load Switch, PA Switch, and Battery Switch for Portable Devices
- P-Channel MOSFET
Key features
- TrenchFET Power MOSFET Thermally Enhanced DFN2X2 Package - Small Footprint Area - Low On-Resistance
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMPB30XPEX-VB#C52148795VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹94.70 · 10 in stock | View |
 | NTLUS3A40PZTAG-VB#C7463542VBsemi Elec · DFN2x2-6-EP | VBsemi Elec | DFN2x2-6-EP | 20 | ₹89.49 · 20 in stock | View |
 | FDMA520PZ-VB#C7494575VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 25 | ₹87.81 · 25 in stock | View |
| BUK4D38-20PX-VB#C52148650VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹94.70 · 10 in stock | View | |
 | PMPB20XPEZ-VB#C52148792VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹94.70 · 10 in stock | View |
