VISHAYDatasheet (PDF)

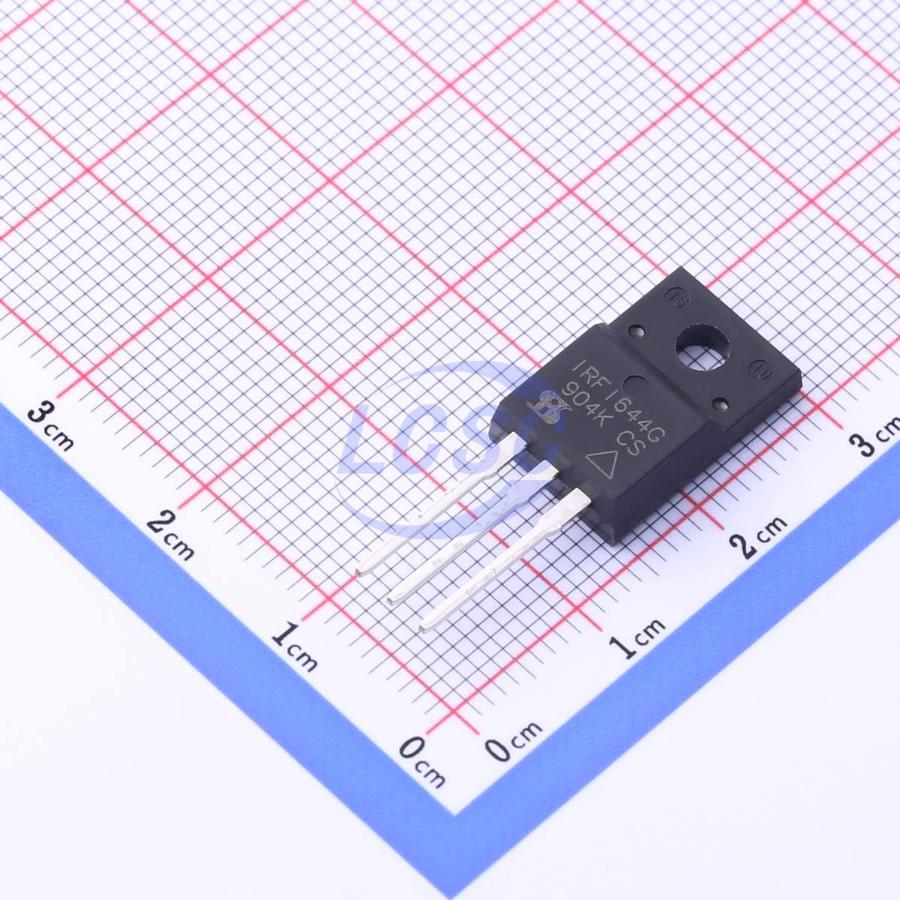

IRFI644GPBF
40W 250V 7.9A 280mΩ@10V 1 N-channel N-Channel TO-220F-3 Single FETs, MOSFETs RoHS
TO-220F-3ROHS3 CompliantActive
MOSFET N-CH 250V 7.9A TO-220F-3
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFI644GPBF
- Store part #
- C2962728
- Package / case
- TO-220F-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C2962728
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹319.65 | ₹319.65 |
| 10+ | ₹271.41 | ₹2,714.10 |
| 50+ | ₹241.21 | ₹12,060.50 |
| 100+ | ₹210.13 | ₹21,013.00 |
| 500+ | ₹196.00 | ₹98,000.00 |
| 1,000+ | ₹190.14 | ₹1,90,140.00 |
1 × ₹319.65
₹319.65
excl. GST
₹377.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFI644GPBF
₹319.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 40W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 7.9A
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 280mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.84 g
Overview
The third-generation power MOSFET offers designers the best combination of fast switching, rugged device design, low on-resistance, and cost-effectiveness. The TO-220 FULLPAK package eliminates the need for additional isolation hardware in commercial-industrial applications. The molding compound used provides high isolation capability with low thermal resistance between the heatsink tab and external heatsink. This isolation is equivalent to that achieved with a 100-micron mica barrier used with standard TO-220 products. The FULLPAK package can be mounted to a heatsink using a single clip or single screw.
Applications
- Switching applications
Key features
- Isolated package
- High-voltage isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Heatsink-to-pin creepage distance = 4.8 mm
- Dynamic dV/dt rating
- Low thermal resistance
