InfineonDatasheet (PDF)

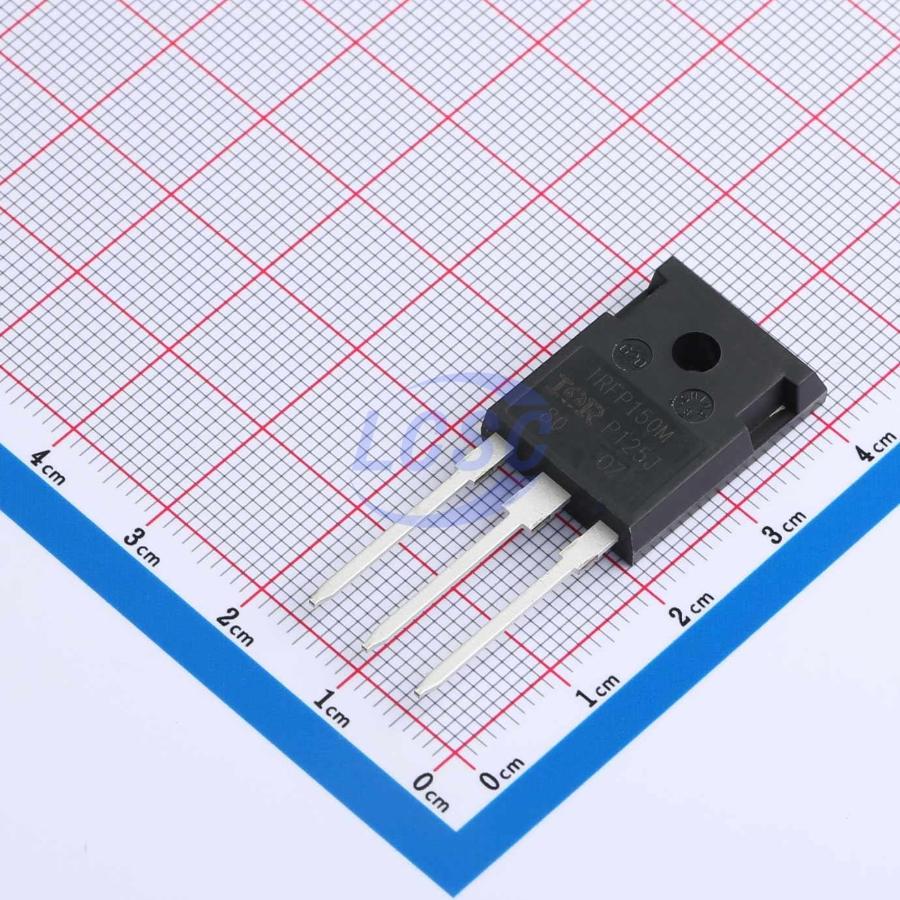

IRFP150MPBF
N-Channel 100V 42A 160W Through Hole TO-247AC-3
TO-247AC-3ROHS CompliantDiscontinued
MOSFET N-CH 100V 42A TO-247AC-3
- Manufacturer
- Infineon
- Manufacturer part #
- IRFP150MPBF
- Store part #
- C2673
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C2673
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹280.21 | ₹280.21 |
| 10+ | ₹240.36 | ₹2,403.60 |
| 25+ | ₹183.98 | ₹4,599.50 |
| 100+ | ₹158.28 | ₹15,828.00 |
| 400+ | ₹146.75 | ₹58,700.00 |
| 800+ | ₹141.75 | ₹1,13,400.00 |
1 × ₹280.21
₹280.21
excl. GST
₹330.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFP150MPBF
₹280.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 450pF
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 160W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 42A
- Reverse Transfer Capacitance (Crss)
- 230pF
- RDS(on)
- 36mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.2 g
Overview
Fifth Generation HEXFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-247 package is preferred for commercial industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole.
Key features
- Advanced Process Technology
- Dynamic dv/dt Rating
- 175°C Operating Temperature
- Fast Switching
- Fully Avalanche Rated
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFP150NPBF#C212023Infineon · TO-247AC-3 | Infineon | TO-247AC-3 | 34,995 | ₹103.39 · 34,995 in stock | View |
 | IRFP150NPBF-OSEN#C47148317OSEN · TO-247S | OSEN | TO-247S | 36 | ₹77.08 · 36 in stock | View |
 | YFW50N20AP#C50327288YFW · TO-247 | YFW | TO-247 | 9 | ₹150.33 · 9 in stock | View |
 | SL90N20P#C5375306Slkor · TO-247 | Slkor | TO-247 | 8 | ₹427.81 · 8 in stock | View |
 | SUG80050E-GE3#C6830084VISHAY · TO-247AC | VISHAY | TO-247AC | 24 | ₹812.26 · 24 in stock | View |
