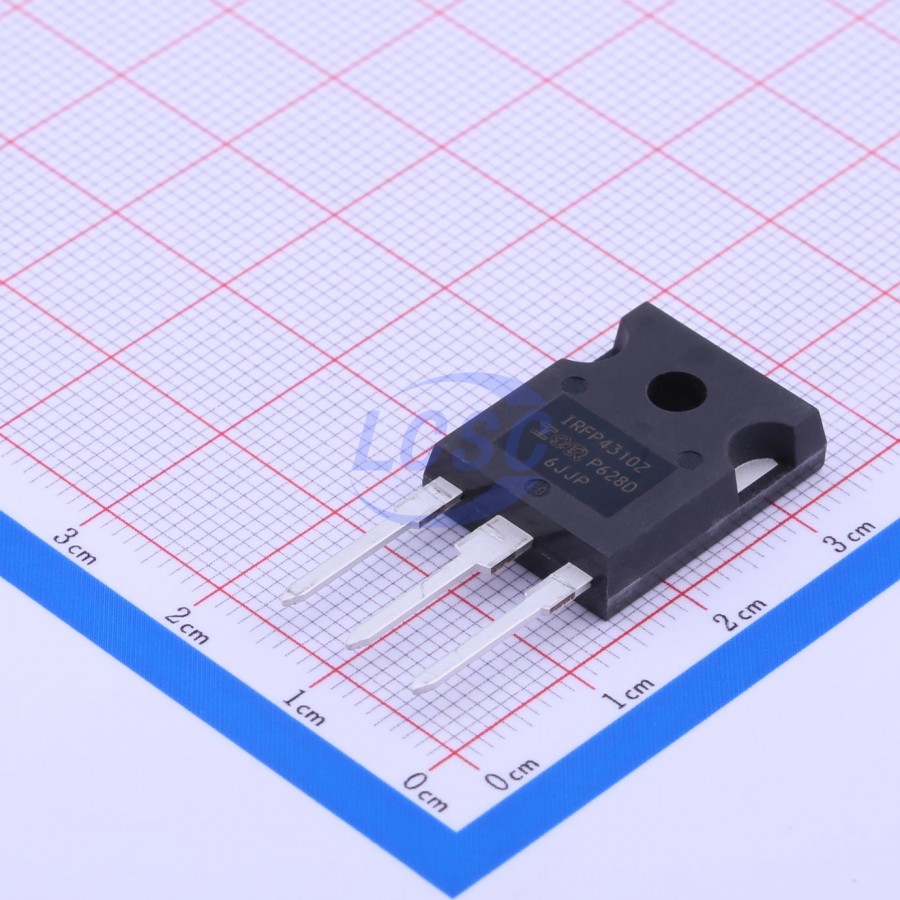

IRFP4310ZPBF
280W 100V 134A 6mΩ@10V 1 N-channel N-Channel TO-247AC-3 Single FETs, MOSFETs RoHS
TO-247AC-3ROHS3 CompliantActive
MOSFET N-CH 100V 134A TO-247AC-3
- Manufacturer
- Infineon
- Manufacturer part #
- IRFP4310ZPBF
- Store part #
- C2916
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
127 in stock
#C2916
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹245.22 | ₹245.22 |
| 10+ | ₹202.54 | ₹2,025.40 |
| 25+ | ₹175.97 | ₹4,399.25 |
| 100+ | ₹148.53 | ₹14,853.00 |
| 400+ | ₹136.11 | ₹54,444.00 |
| 800+ | ₹130.88 | ₹1,04,704.00 |
1 × ₹245.22
₹245.22
excl. GST
₹289.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFP4310ZPBF
₹245.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 490pF
- Ciss-Input Capacitance
- 6.86nF
- Pd - Power Dissipation
- 280W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 134A
- Reverse Transfer Capacitance (Crss)
- 220pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 170nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.2 g
Overview
Applications
- High-efficiency synchronous rectification in switching power supplies
- Uninterruptible power supplies
- High-speed power switching
- Hard-switching and high-frequency circuits
Key features
- Improved gate, avalanche, and dynamic dV/dt robustness
- Fully characterized capacitance and avalanche SOA
- Enhanced body diode dV/dt and dI/dt capability
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS180N10FC#C41417587MASPOWER · TO-247 | MASPOWER | TO-247 | 23 | ₹264.85 · 23 in stock | View |
 | NCEP15T14T#C2686614NCE · TO-247 | NCE | TO-247 | 77 | ₹442.35 · 77 in stock | View |
 | HY3810NA2W#C2985897HUAYI · TO-247A-3L | HUAYI | TO-247A-3L | 6 | ₹218.67 · 6 in stock | View |
 | IXFR200N10P-VB#C29778852VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹399.32 · 5 in stock | View |
 | IRFP4568PBF-MNS#C54839525Minos · TO-247 | Minos | TO-247 | 363 | ₹195.74 · 363 in stock | View |
