InfineonDatasheet (PDF)

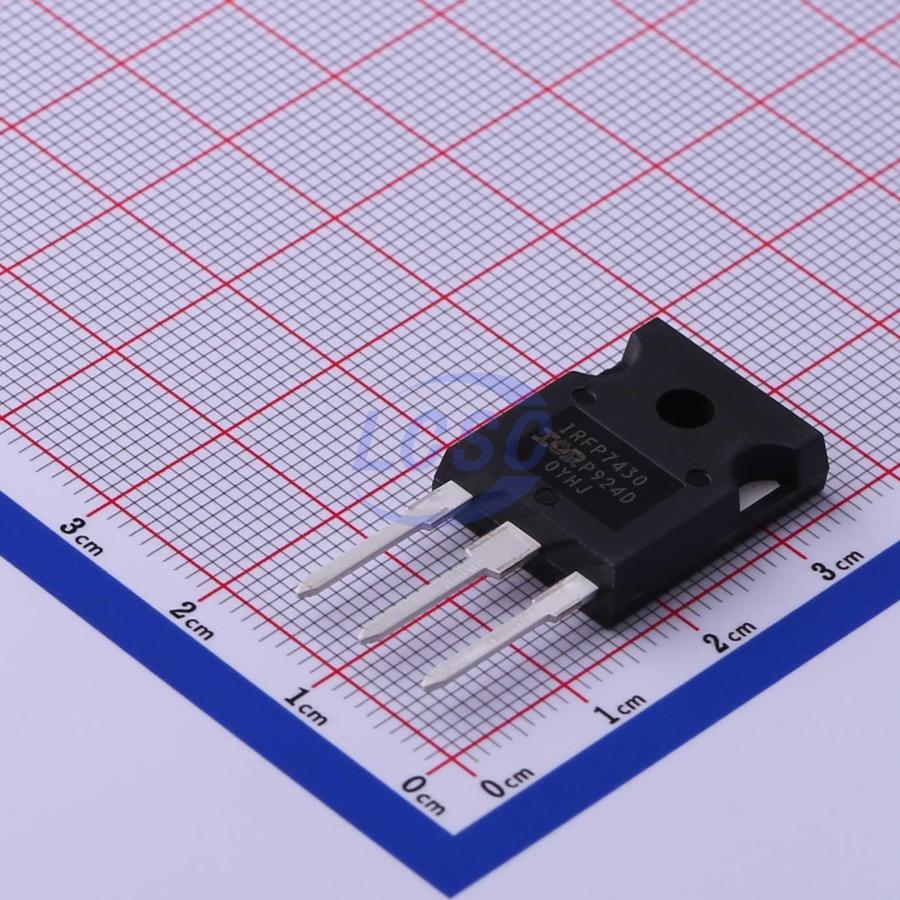

IRFP7430PBF
N-Channel 40V 404A 366W Through Hole TO-247AC-3
TO-247AC-3ROHS3 CompliantActive
MOSFET N-CH 40V 404A TO-247AC-3
- Manufacturer
- Infineon
- Manufacturer part #
- IRFP7430PBF
- Store part #
- C500529
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C500529
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹390.48 | ₹390.48 |
| 10+ | ₹332.17 | ₹3,321.70 |
| 30+ | ₹297.69 | ₹8,930.70 |
| 100+ | ₹262.56 | ₹26,256.00 |
| 500+ | ₹246.53 | ₹1,23,265.00 |
| 1,000+ | ₹239.16 | ₹2,39,160.00 |
1 × ₹390.48
₹390.48
excl. GST
₹460.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFP7430PBF
₹390.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.13nF
- Ciss-Input Capacitance
- 14.24nF
- Pd - Power Dissipation
- 366W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 404A
- Reverse Transfer Capacitance (Crss)
- 1.46nF
- RDS(on)
- 1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 460nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.08 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC Inverters
Key features
- Improved Gate, Avalanche and Dynamic dV/dt
- Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dl/dt Capability
- Lead-Free
- RoHS Compliant, Halogen-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IXFX520N075T2#C25950871Littelfuse/IXYS · PLUS-247 | Littelfuse/IXYS | PLUS-247 | 5 | ₹4,137.40 · 5 in stock | View |
 | IRF100P218#C537740Infineon · TO-247-3 | Infineon | TO-247-3 | 195 | ₹808.08 · 195 in stock | View |
 | IXTH500N04T2#C3281024Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 3 | ₹4,372.18 · 3 in stock | View |
 | MS420N10JDC0#C55042306MASPOWER · TO-247 | MASPOWER | TO-247 | On request | ₹275.58 · 0 in stock | View |
| IXTH440N055T2#C3290679Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | On request | ₹1,757.82 · 0 in stock | View | |
