InfineonDatasheet (PDF)

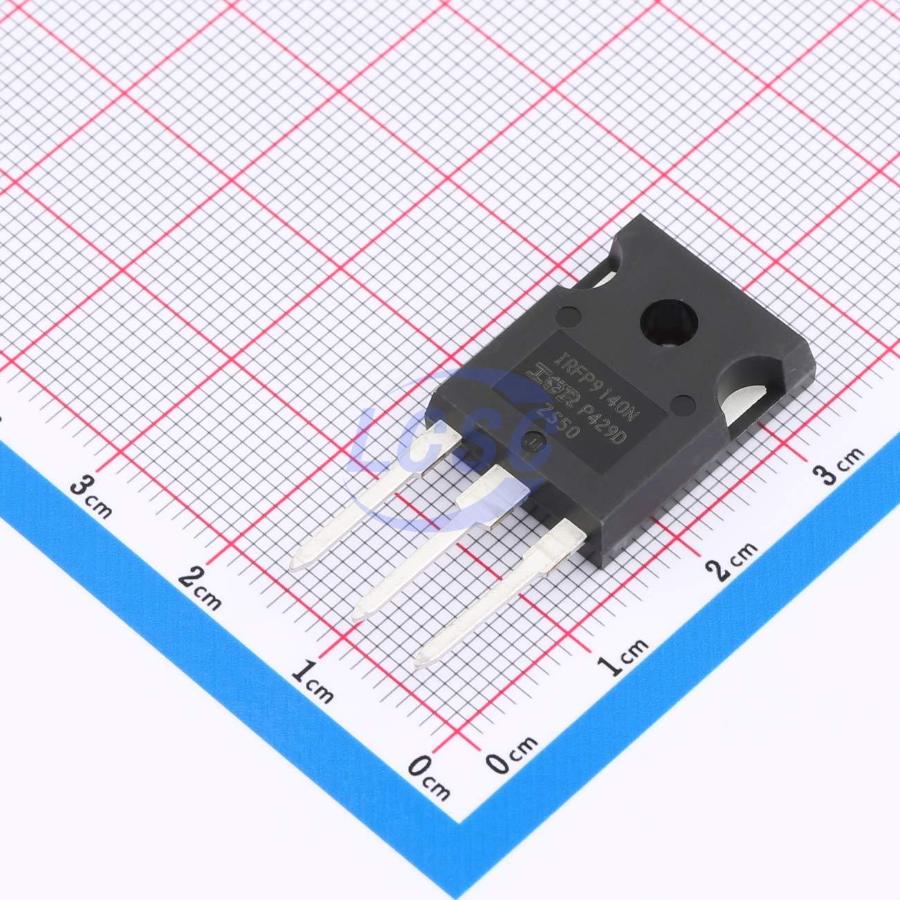

IRFP9140NPBF
P-Channel 100V 23A 140W Through Hole TO-247AC-3
TO-247AC-3ROHS3 CompliantActive
MOSFET P-CH 100V 23A TO-247AC-3
- Manufacturer
- Infineon
- Manufacturer part #
- IRFP9140NPBF
- Store part #
- C2685
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,016 in stock
#C2685
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.65 | ₹205.65 |
| 10+ | ₹172.28 | ₹1,722.80 |
| 25+ | ₹153.96 | ₹3,849.00 |
| 100+ | ₹133.46 | ₹13,346.00 |
| 400+ | ₹124.08 | ₹49,632.00 |
| 800+ | ₹119.94 | ₹95,952.00 |
1 × ₹205.65
₹205.65
excl. GST
₹242.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFP9140NPBF
₹205.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 400pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 140W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 23A
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 117mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 97nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.2 g
Overview
The 5th Generation HEXFET utilizes advanced processing technology to achieve extremely low on-resistance per unit silicon area. This advantage, combined with the well-known fast switching speed and rugged device design of HEXFET power MOSFETs, provides designers with an extremely efficient and reliable device suitable for a wide range of applications. The TO-247 package is intended for commercial and industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar to the earlier TO-218 package, but features improved performance due to its isolated mounting hole.
Key features
- Advanced process technology
- Dynamic dv/dt rating
- 175°C operating temperature
- P-channel
- Fast switching
- Fully avalanche rated
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IXTH44P15T#C22409817Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 5 | ₹2,403.98 · 5 in stock | View |
 | IXTH68P20T#C22443608Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 3 | ₹2,662.05 · 3 in stock | View |
| IXTH140P10T#C22443604Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 1 | ₹2,678.63 · 1 in stock | View | |
 | XRS150P10H#C42457141XNRUSEMI · TO-247 | XNRUSEMI | TO-247 | 8 | ₹290.39 · 8 in stock | View |
 | IXTH48P20P#C22409675Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 1 | ₹1,792.49 · 1 in stock | View |
