HXY MOSFETDatasheet (PDF)

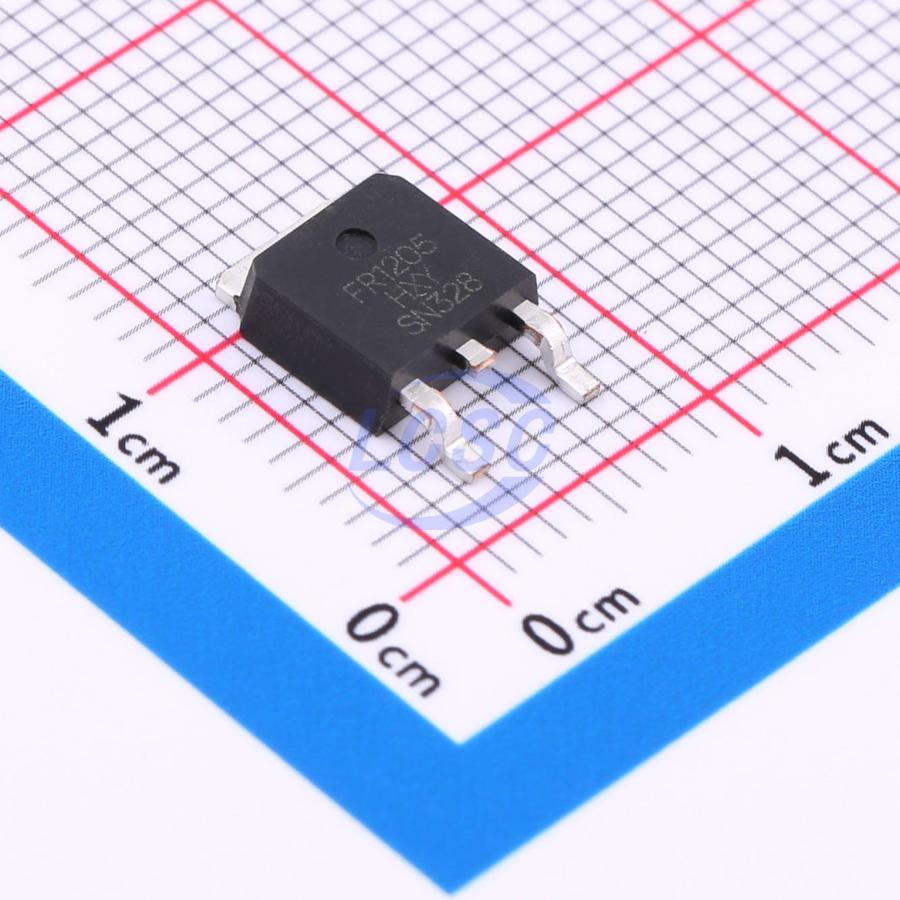

IRFR1205TRPBF-HXY
N-Channel 60V 30A Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 60V 30A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRFR1205TRPBF-HXY
- Store part #
- C7543025
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C7543025
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.54 | ₹117.70 |
| 50+ | ₹18.80 | ₹940.00 |
| 150+ | ₹16.76 | ₹2,514.00 |
| 500+ | ₹12.77 | ₹6,385.00 |
| 2,500+ | ₹11.64 | ₹29,100.00 |
| 5,000+ | ₹10.97 | ₹54,850.00 |
5 × ₹23.54
₹117.70
excl. GST
₹138.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR1205TRPBF-HXY
₹117.70 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 86pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.378nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 64pF
- RDS(on)
- 22mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.58 g
