VISHAYDatasheet (PDF)

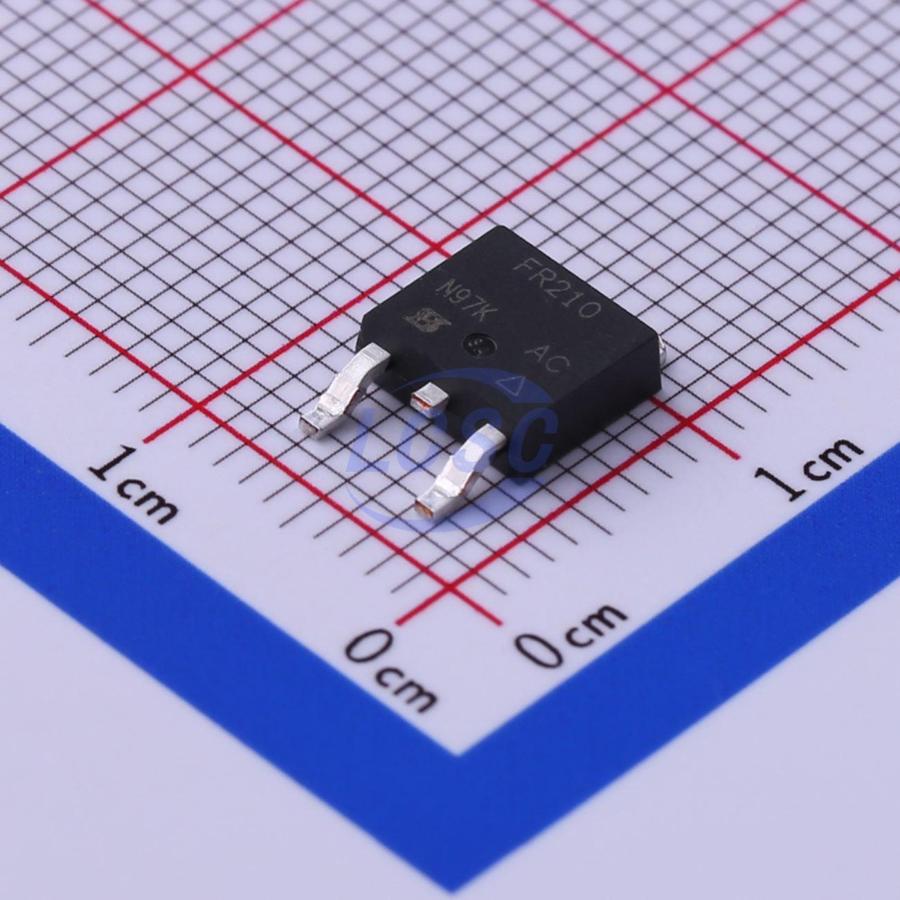

IRFR210TRPBF
N-Channel 200V 2.6A 25W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 200V 2.6A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR210TRPBF
- Store part #
- C466981
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C466981
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.24 | ₹63.24 |
| 10+ | ₹61.72 | ₹617.20 |
| 30+ | ₹60.84 | ₹1,825.20 |
| 100+ | ₹59.98 | ₹5,998.00 |
1 × ₹63.24
₹63.24
excl. GST
₹74.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR210TRPBF
₹63.24 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 2.6A
- Ciss-Input Capacitance
- 140pF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 1.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.632 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- RoHS COMPLIANT HALOGEN FREE Available
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Surface Mount (IRFR210, SiHFR210)
- Straight Lead (IRFU210, SiHFU210)
- Available in Tape and Reel
- Fast Switching
- Ease of Paralleling
