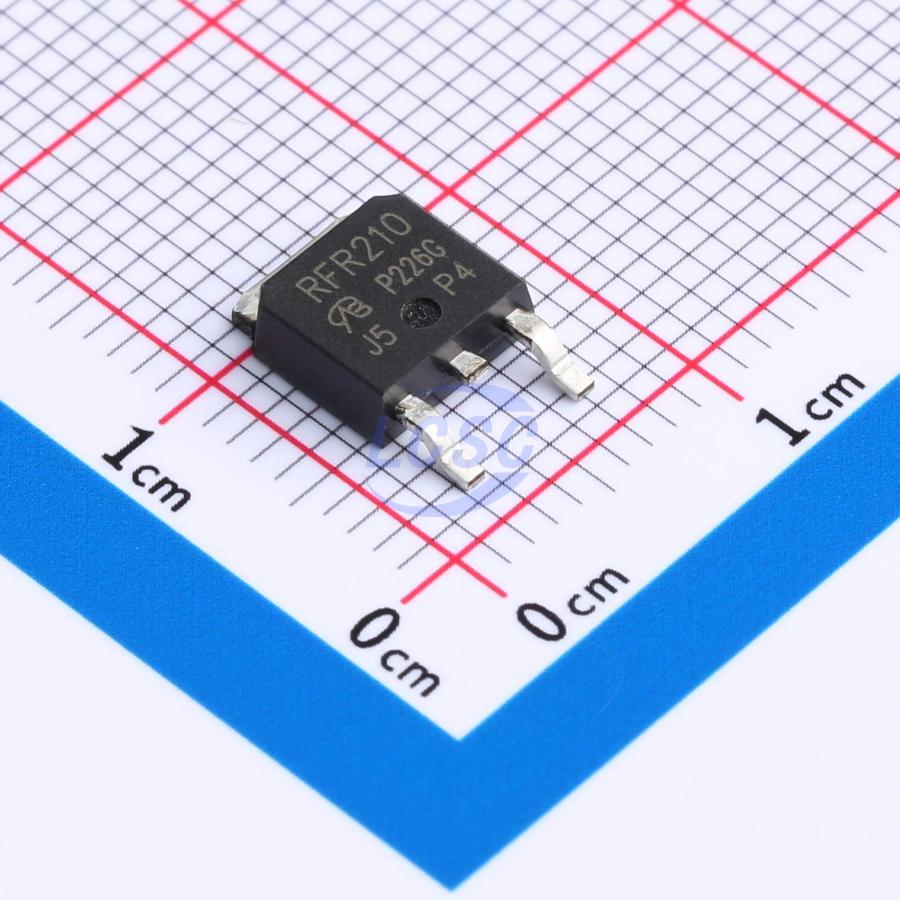

IRFR210TRPBF-VB
N-Channel 200V 5A 42W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR210TRPBF-VB
- Store part #
- C5179584
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5179584
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.71 | ₹67.71 |
| 10+ | ₹54.86 | ₹548.60 |
| 30+ | ₹49.20 | ₹1,476.00 |
| 100+ | ₹42.24 | ₹4,224.00 |
| 500+ | ₹33.96 | ₹16,980.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹67.71
₹67.71
excl. GST
₹79.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR210TRPBF-VB
₹67.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 100pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 185pF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 850mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- PWM optimized
- 100% Rg tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQD5N20LTM-VB#C19188184VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 93 | ₹61.55 · 93 in stock | View |
 | FDD6N20TM-VB#C19190141VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 13 | ₹60.71 · 13 in stock | View |
 | ZXMN20B28KTC-VB#C20754995VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 31 | ₹60.71 · 31 in stock | View |
 | FQD4N20-VB#C20755504VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹60.71 · 38 in stock | View |
 | SIHFR210-VB#C2680785VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹59.67 · 50 in stock | View |
