InfineonDatasheet (PDF)

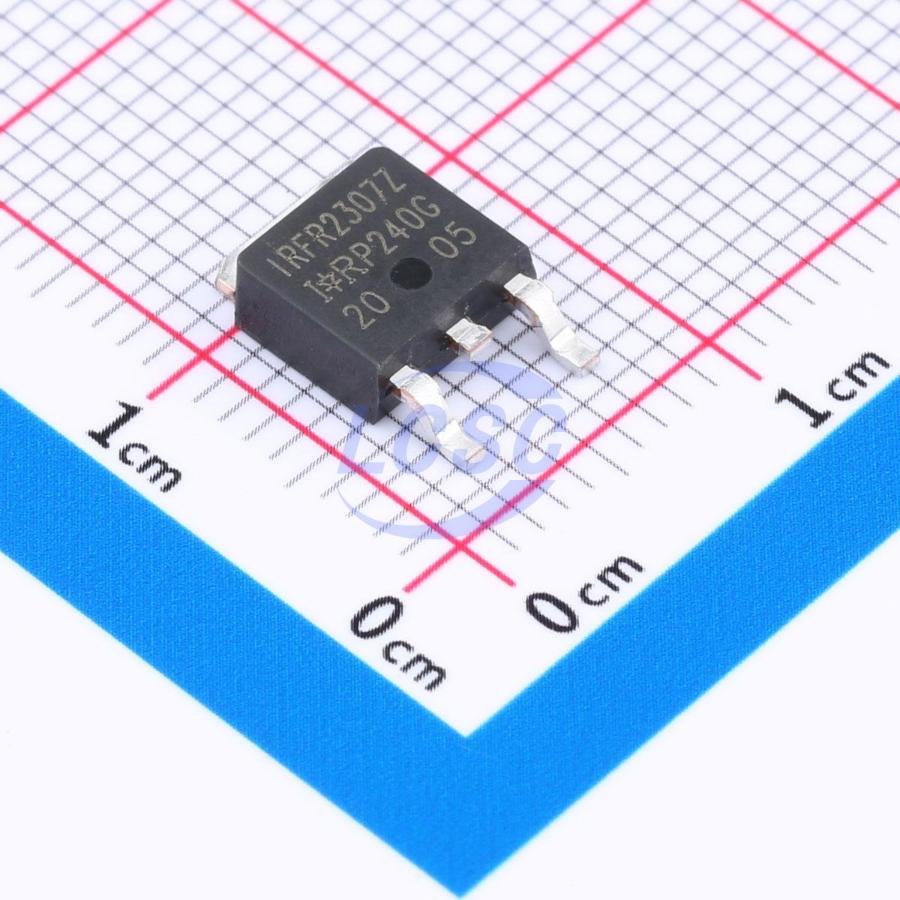

IRFR2307ZTRLPBF
N-Channel 75V 42A 110W Surface Mount DPAK(TO-252AA)
DPAK(TO-252AA)ROHS3 CompliantActive
MOSFET N-CH 75V 42A DPAK(TO-252AA)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFR2307ZTRLPBF
- Store part #
- C537957
- Package / case
- DPAK(TO-252AA)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C537957
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹230.56 | ₹230.56 |
| 10+ | ₹192.54 | ₹1,925.40 |
| 30+ | ₹171.67 | ₹5,150.10 |
| 100+ | ₹141.90 | ₹14,190.00 |
| 500+ | ₹131.25 | ₹65,625.00 |
| 1,000+ | ₹126.69 | ₹1,26,690.00 |
1 × ₹230.56
₹230.56
excl. GST
₹272.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRFR2307ZTRLPBF
₹230.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 280pF
- Ciss-Input Capacitance
- 2.19nF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 42A
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 16mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 75nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
This HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in a wide variety of applications.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free
