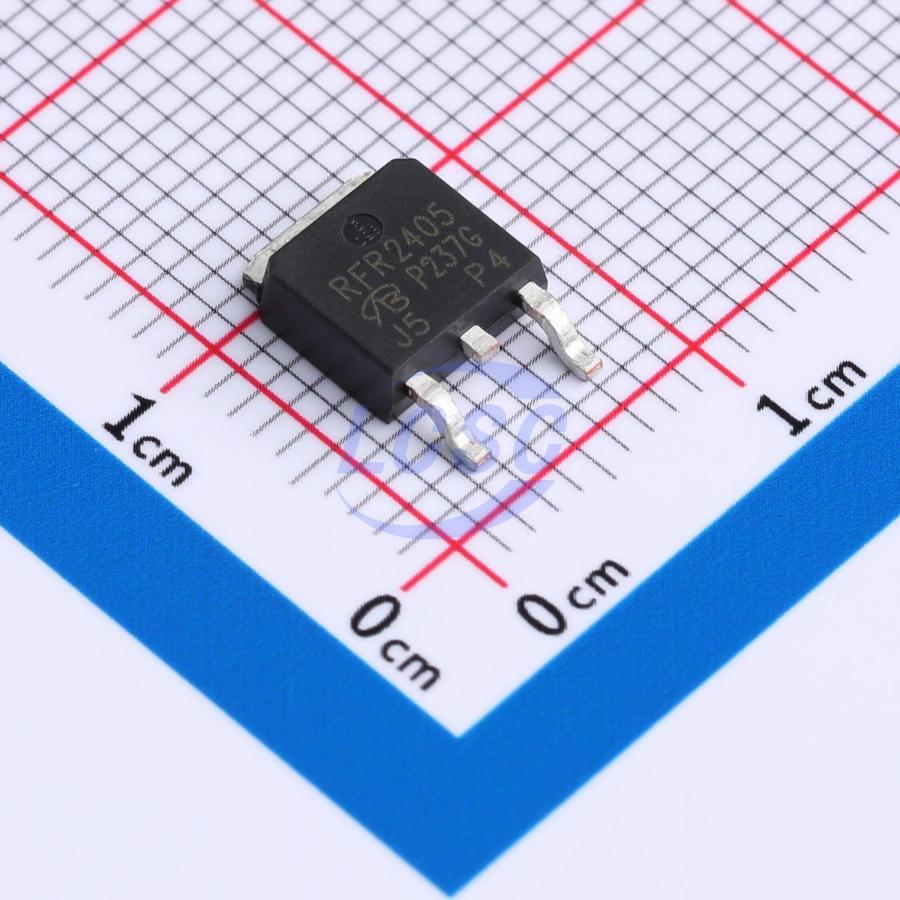

IRFR2405TRPBF-VB
N-Channel 60V 56A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 56A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR2405TRPBF-VB
- Store part #
- C5240585
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5240585
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.45 | ₹87.45 |
| 10+ | ₹72.00 | ₹720.00 |
| 30+ | ₹64.06 | ₹1,921.80 |
| 100+ | ₹56.33 | ₹5,633.00 |
| 500+ | ₹44.33 | ₹22,165.00 |
| 1,000+ | ₹41.90 | ₹41,900.00 |
1 × ₹87.45
₹87.45
excl. GST
₹103.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR2405TRPBF-VB
₹87.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 56A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
Applications
- Primary-side switch
Key features
- 175°C junction temperature
- Trench power MOSFET
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UTT50N06L-TN3-R-VB#C19190180VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹86.92 · 45 in stock | View |
 | BUK9212-55B-VB#C22389268VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹82.56 · 20 in stock | View |
 | FDD5353-VB#C18212542VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹86.92 · 30 in stock | View |
 | IRFR2905ZTRPBF-VB#C18212554VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 12 | ₹106.49 · 12 in stock | View |
 | SSF6014D-VB#C18212606VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹105.83 · 35 in stock | View |
