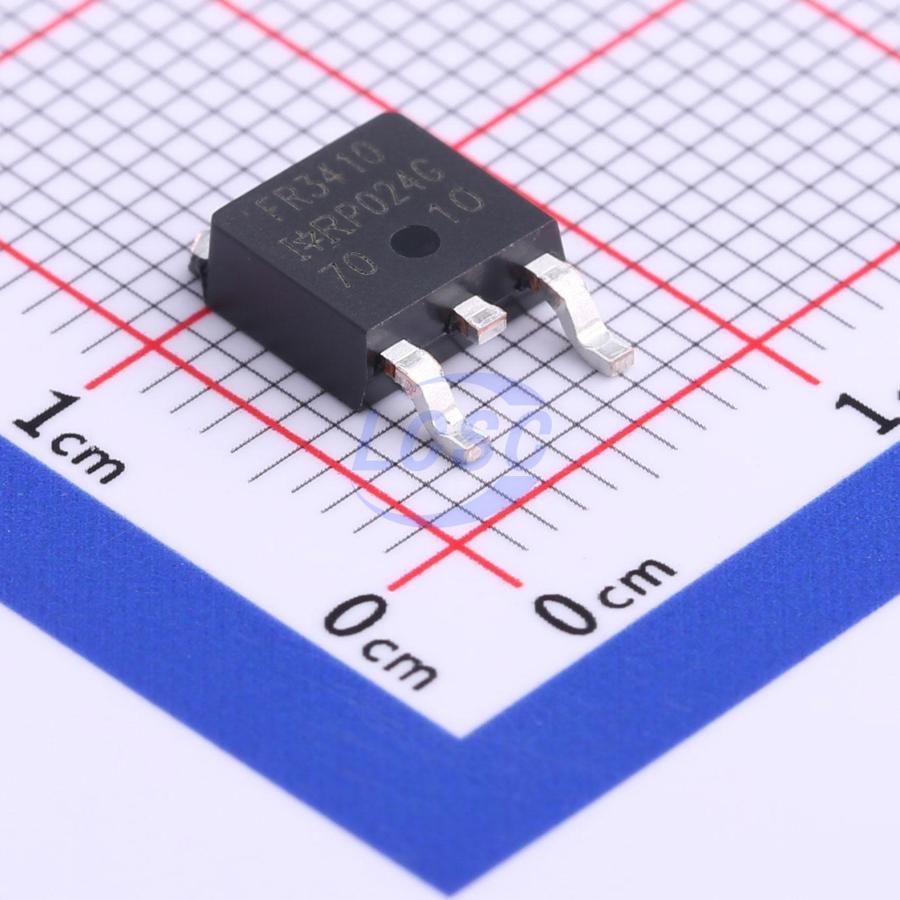

IRFR3410TRLPBF
N-Channel 100V 31A 110W Surface Mount DPAK(TO-252AA)
DPAK(TO-252AA)ROHS3 CompliantActive
MOSFET N-CH 100V 31A DPAK(TO-252AA)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFR3410TRLPBF
- Store part #
- C537964
- Package / case
- DPAK(TO-252AA)
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
101 in stock
#C537964
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.00 | ₹162.00 |
| 10+ | ₹135.48 | ₹1,354.80 |
| 30+ | ₹120.91 | ₹3,627.30 |
| 100+ | ₹104.38 | ₹10,438.00 |
| 500+ | ₹96.99 | ₹48,495.00 |
| 1,000+ | ₹93.72 | ₹93,720.00 |
1 × ₹162.00
₹162.00
excl. GST
₹191.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRFR3410TRLPBF
₹162.00 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 220pF
- Ciss-Input Capacitance
- 1.69nF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 31A
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 39mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.505 g
Overview
Applications
- High frequency DC-DC converters Lead-Free
Key features
- Low Gate-to-Drain Charge to Reduce Switching Losses
- Fully Characterized Capacitance Including Effective Coss to Simplify Design
- Fully Characterized Avalanche Voltage and Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR3410TRPBF#C3016Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 31,485 | ₹71.79 · 31,485 in stock | View |
| IRFR540ZTRLPBF#C537984Infineon · DPAK | Infineon | DPAK | 682 | ₹124.28 · 682 in stock | View | |
 | IRFR540ZTRPBF#C537985Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 2,186 | ₹205.36 · 2,186 in stock | View |
 | IPD12CN10NGATMA1#C6969203Infineon · TO-252-3 | Infineon | TO-252-3 | On request | ₹230.40 · 0 in stock | View |
 | IPD200N15N3 G#C386332Infineon · TO-252-3 | Infineon | TO-252-3 | 1,218 | ₹170.75 · 1,218 in stock | View |
