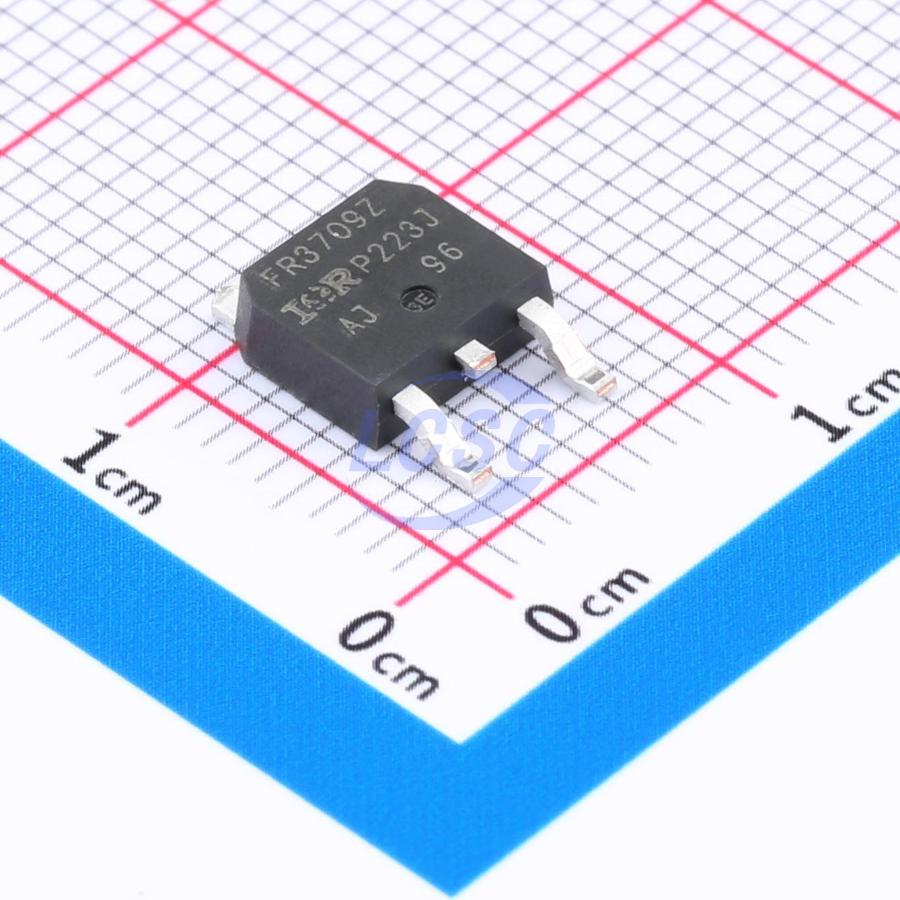

IRFR3709ZTRLPBF
N-Channel 30V 86A 79W Surface Mount DPAK(TO-252AA)
DPAK(TO-252AA)ROHS CompliantActive
MOSFET N-CH 30V 86A DPAK(TO-252AA)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFR3709ZTRLPBF
- Store part #
- C537970
- Package / case
- DPAK(TO-252AA)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C537970
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.07 | ₹141.07 |
| 10+ | ₹113.65 | ₹1,136.50 |
| 30+ | ₹99.93 | ₹2,997.90 |
| 100+ | ₹82.52 | ₹8,252.00 |
| 500+ | ₹74.23 | ₹37,115.00 |
| 1,000+ | ₹70.11 | ₹70,110.00 |
1 × ₹141.07
₹141.07
excl. GST
₹166.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRFR3709ZTRLPBF
₹141.07 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 460pF
- Ciss-Input Capacitance
- 2.33nF
- Pd - Power Dissipation
- 79W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 86A
- Reverse Transfer Capacitance (Crss)
- 230pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.35V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.15 g
Overview
Applications
- High Frequency Synchronous Buck Converters for Computer Processor Power
- High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
Key features
- Very Low RDs(on) at 4.5V VGSs
- Ultra-Low Gate Impedance
- Fully Characterized Avalanche Voltage and Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR3709Z#C5350859TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,520 | ₹45.56 · 1,520 in stock | View |
 | IRFR3709ZTR(UMW)#C5159788UMW · TO-252 | UMW | TO-252 | 1,005 | ₹30.44 · 1,005 in stock | View |
 | IRLR8726TRLPBF#C67280Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 2,190 | ₹38.50 · 2,190 in stock | View |
 | IRLR8726TRPBF#C81137Infineon · TO-252 | Infineon | TO-252 | 29,550 | ₹20.67 · 29,550 in stock | View |
 | MOT3141AD#C52711202MOT · TO-252 | MOT | TO-252 | 30 | ₹27.53 · 30 in stock | View |
