InfineonDatasheet (PDF)

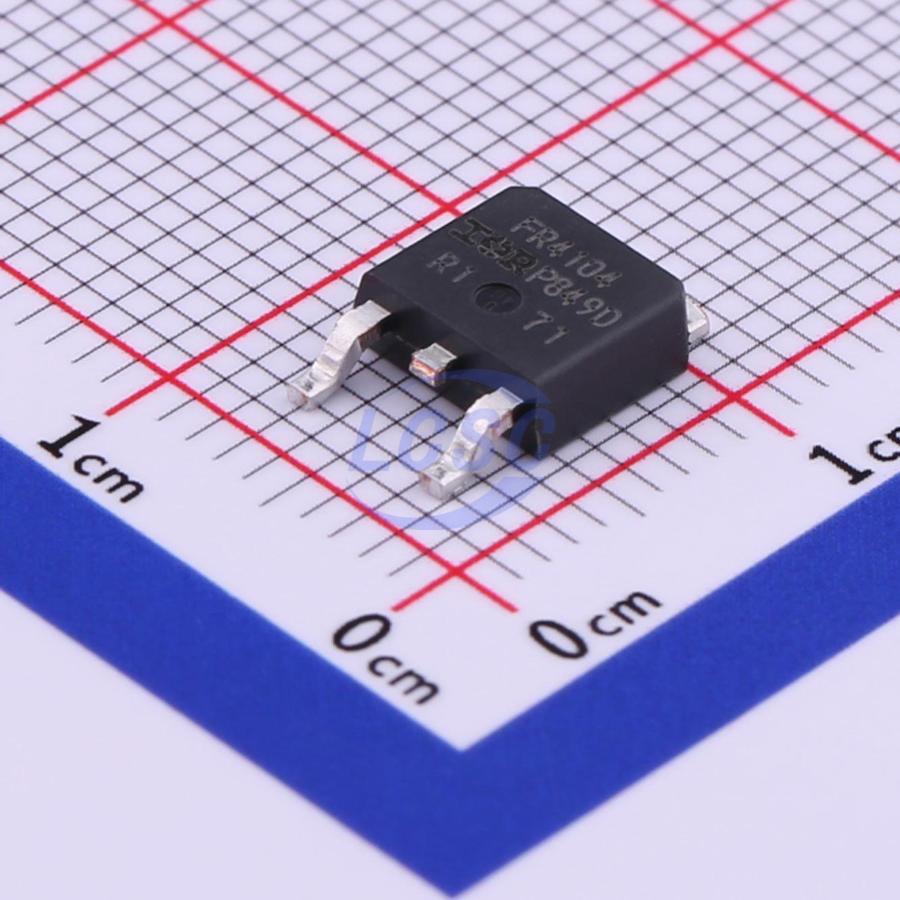

IRFR4104TRPBF
N-Channel 40V 42A 140W Surface Mount DPAK(TO-252AA)
DPAK(TO-252AA)ROHS3 CompliantActive
MOSFET N-CH 40V 42A DPAK(TO-252AA)
- Manufacturer
- Infineon
- Manufacturer part #
- IRFR4104TRPBF
- Store part #
- C513166
- Package / case
- DPAK(TO-252AA)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C513166
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.91 | ₹147.91 |
| 10+ | ₹123.69 | ₹1,236.90 |
| 30+ | ₹110.30 | ₹3,309.00 |
| 100+ | ₹95.43 | ₹9,543.00 |
| 500+ | ₹88.63 | ₹44,315.00 |
| 1,000+ | ₹85.65 | ₹85,650.00 |
1 × ₹147.91
₹147.91
excl. GST
₹174.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR4104TRPBF
₹147.91 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 660pF
- Ciss-Input Capacitance
- 2.95nF
- Pd - Power Dissipation
- 140W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 42A
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 5.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 89nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.397 g
Overview
This HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low onresistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in a wide variety of applications.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR1010ZTRLPBF#C537946Infineon · DPAK | Infineon | DPAK | 10 | ₹329.07 · 10 in stock | View |
 | IRFR3607TRPBF#C74775Infineon · TO-252 | Infineon | TO-252 | 1,344 | ₹135.09 · 1,344 in stock | View |
 | DOD75N04#C42374599DOINGTER · TO-252 | DOINGTER | TO-252 | 1,535 | ₹21.15 · 1,535 in stock | View |
 | HSU4016#C508792HUASHUO · TO-252-2 | HUASHUO | TO-252-2 | 5 | ₹35.87 · 5 in stock | View |
 | TPM4060NK3#C5370954TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 455 | ₹18.11 · 455 in stock | View |
