TECH PUBLICDatasheet (PDF)

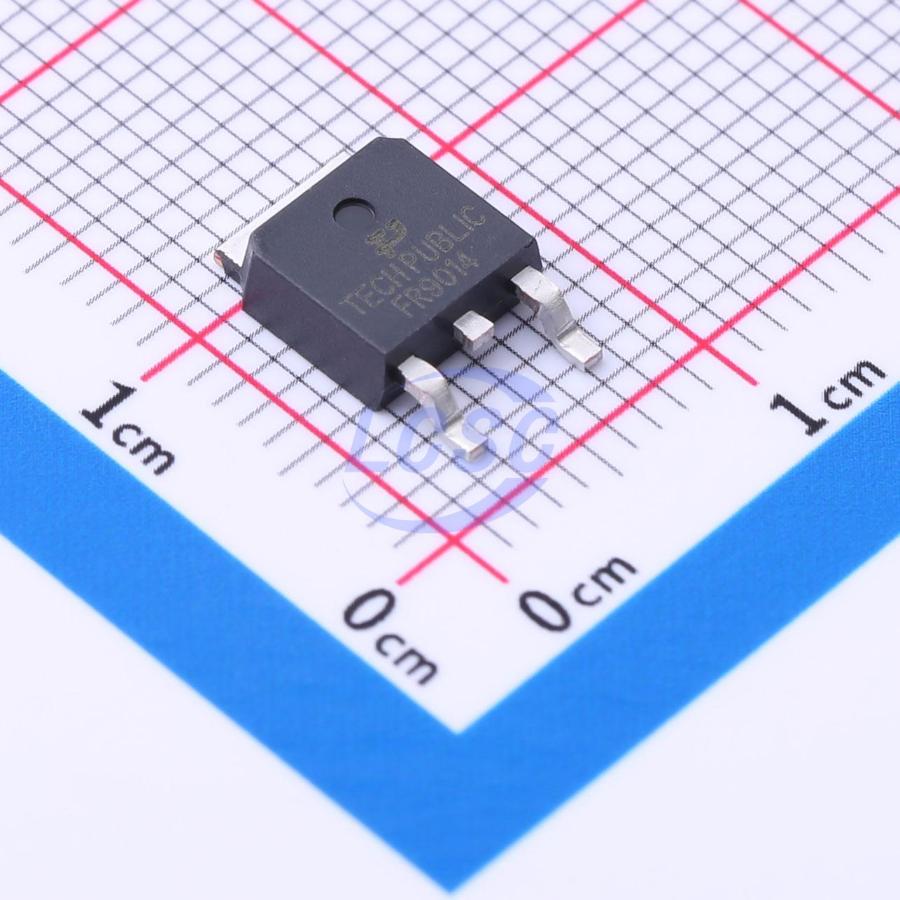

IRFR9014
60V 13A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET 60V 13A TO-252
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRFR9014
- Store part #
- C5310971
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,240 in stock
#C5310971
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.08 | ₹180.40 |
| 50+ | ₹31.51 | ₹1,575.50 |
| 150+ | ₹29.56 | ₹4,434.00 |
| 500+ | ₹24.99 | ₹12,495.00 |
| 2,500+ | ₹23.91 | ₹59,775.00 |
| 5,000+ | ₹23.26 | ₹1,16,300.00 |
5 × ₹36.08
₹180.40
excl. GST
₹212.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR9014
₹180.40 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 90.6pF
- Ciss-Input Capacitance
- 1.6307nF
- Pd - Power Dissipation
- 60W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 13A
- Reverse Transfer Capacitance (Crss)
- 77.3pF
- RDS(on)
- 100mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 37.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.46 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable Electronics
- Logic Level Shift
Key features
- VDS = -60V, IO = -13A
- RDS(ON) 100mΩ @ VGS = -10V
- RDS(ON) 110mΩ @ VGS = -4.5V (Typ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR5505#C5246440TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 3,965 | ₹50.86 · 3,965 in stock | View |
 | TPM6013PHK3#C5246427TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 212 | ₹31.51 · 212 in stock | View |
 | STD10PF06(TP)#C5246431TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,695 | ₹52.80 · 1,695 in stock | View |
 | STD15P6F6AG#C5246432TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 2,812 | ₹48.36 · 2,812 in stock | View |
 | IRFR9024NTRPBF#C19829456TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,990 | ₹50.67 · 1,990 in stock | View |
