InfineonDatasheet (PDF)

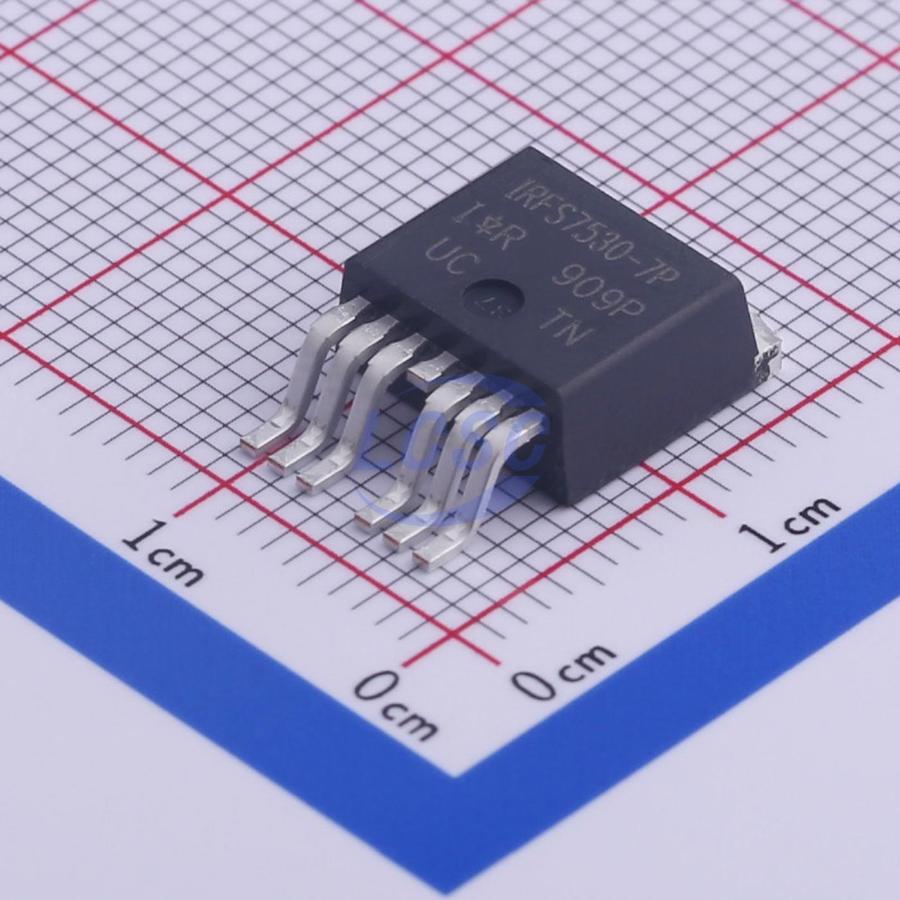

IRFS7530TRL7PP
N-Channel 60V 338A 375W TO-263-7
TO-263-7ROHS3 CompliantActive
MOSFET N-CH 60V 338A TO-263-7
- Manufacturer
- Infineon
- Manufacturer part #
- IRFS7530TRL7PP
- Store part #
- C445669
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,204 in stock
#C445669
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.61 | ₹220.61 |
| 10+ | ₹187.30 | ₹1,873.00 |
| 30+ | ₹166.61 | ₹4,998.30 |
| 100+ | ₹135.25 | ₹13,525.00 |
| 500+ | ₹125.66 | ₹62,830.00 |
| 800+ | ₹121.53 | ₹97,224.00 |
1 × ₹220.61
₹220.61
excl. GST
₹260.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFS7530TRL7PP
₹220.61 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.27nF
- Ciss-Input Capacitance
- 12.96nF
- Pd - Power Dissipation
- 375W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 338A
- Reverse Transfer Capacitance (Crss)
- 760pF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 354nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.73 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CI7530#C42391836Tokmas · TO-263-7 | Tokmas | TO-263-7 | 51 | ₹155.03 · 51 in stock | View |
| IRF60SC241#C537777Infineon · TO-263-7 | Infineon | TO-263-7 | On request | ₹589.94 · 0 in stock | View | |
