VISHAYDatasheet (PDF)

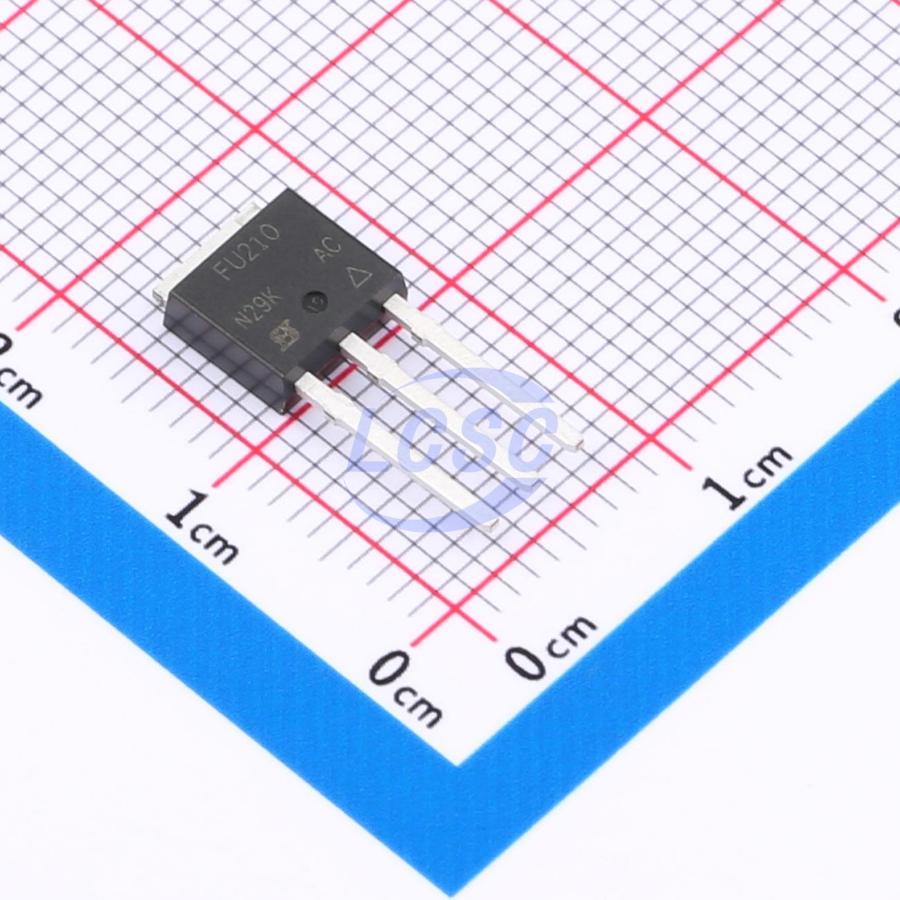

IRFU210PBF
N-Channel 200V 2.6A 2.5W Through Hole TO-251-3
TO-251-3ROHS3 CompliantActive
MOSFET N-CH 200V 2.6A TO-251-3
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFU210PBF
- Store part #
- C467563
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C467563
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.04 | ₹84.04 |
| 10+ | ₹68.66 | ₹686.60 |
| 30+ | ₹60.88 | ₹1,826.40 |
| 75+ | ₹51.31 | ₹3,848.25 |
| 525+ | ₹46.72 | ₹24,528.00 |
| 975+ | ₹44.32 | ₹43,212.00 |
1 × ₹84.04
₹84.04
excl. GST
₹99.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IRFU210PBF
₹84.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 53pF
- Ciss-Input Capacitance
- 140pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 2.6A
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 1.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.706 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- RoHS COMPLIANT HALOGEN FREE Available
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Surface Mount (IRFR210, SiHFR210)
- Straight Lead (IRFU210, SiHFU210)
- Available in Tape and Reel
- Fast Switching
- Ease of Paralleling
