InfineonDatasheet (PDF)

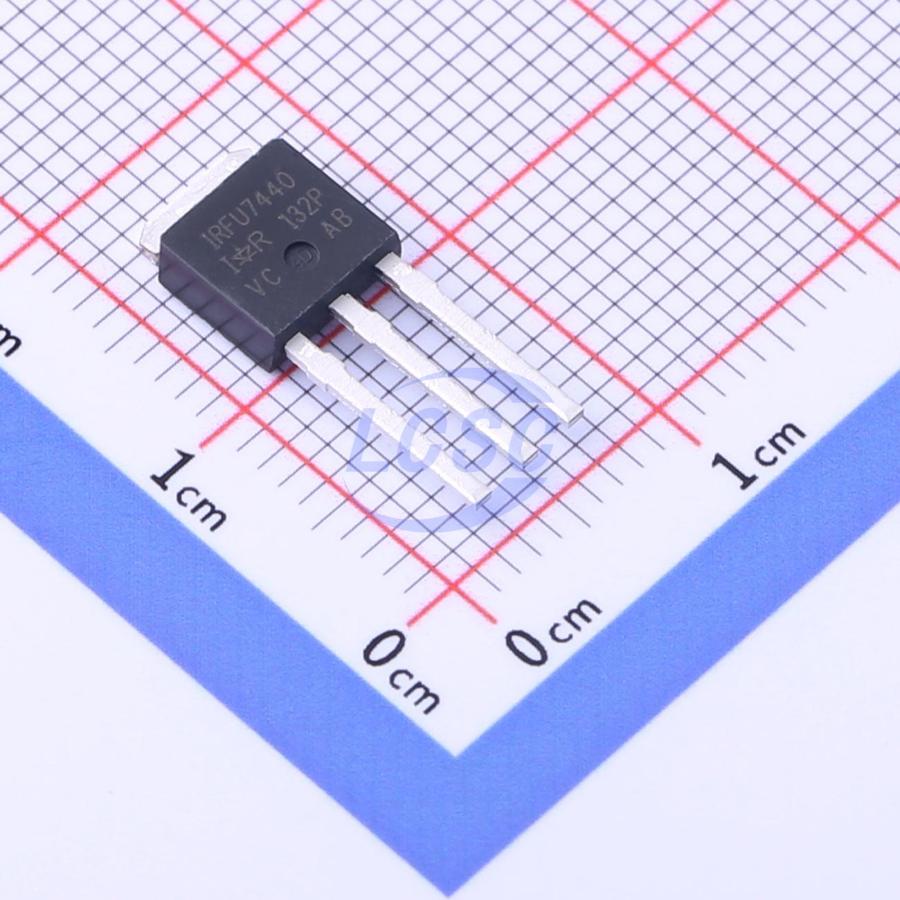

IRFU7440PBF
N-Channel 40V 180A 140W Through Hole IPAK
IPAKROHS CompliantActive
MOSFET N-CH 40V 180A IPAK
- Manufacturer
- Infineon
- Manufacturer part #
- IRFU7440PBF
- Store part #
- C538068
- Package / case
- IPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C538068
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.77 | ₹203.77 |
| 10+ | ₹176.04 | ₹1,760.40 |
| 30+ | ₹160.78 | ₹4,823.40 |
| 75+ | ₹143.59 | ₹10,769.25 |
| 450+ | ₹136.06 | ₹61,227.00 |
| 900+ | ₹132.62 | ₹1,19,358.00 |
1 × ₹203.77
₹203.77
excl. GST
₹240.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IRFU7440PBF
₹203.77 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 180A
- Ciss-Input Capacitance
- 4.61nF
- Pd - Power Dissipation
- 140W
- Reverse Transfer Capacitance (Crss)
- 460pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 134nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.73 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- PWM Inverterized topologies
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Electronic ballast applications
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant containing no Lead, no Bromide, and no Halogen
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AUIRFU8403-701TRL#C3277188Infineon · TO-251-3 | Infineon | TO-251-3 | On request | ₹130.04 · 0 in stock | View | |
