VISHAYDatasheet (PDF)

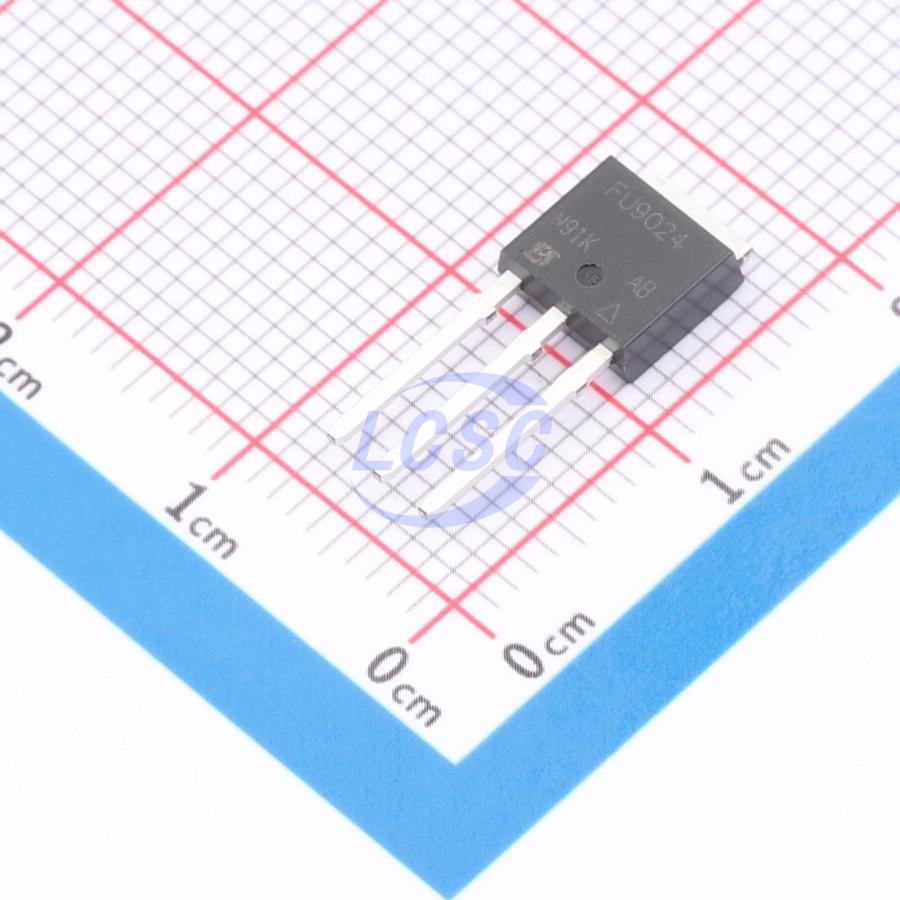

IRFU9024PBF
42W 60V 8.8A 280mΩ@10V 1 P-Channel P-Channel TO-251(IPAK) Single FETs, MOSFETs RoHS
TO-251(IPAK)ROHS3 CompliantActive
P-Channel, Current: -5.6A, Voltage: 60V
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFU9024PBF
- Store part #
- C3033
- Package / case
- TO-251(IPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C3033
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹238.38 | ₹238.38 |
| 10+ | ₹235.15 | ₹2,351.50 |
| 30+ | ₹232.99 | ₹6,989.70 |
| 75+ | ₹230.64 | ₹17,298.00 |
1 × ₹238.38
₹238.38
excl. GST
₹281.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
IRFU9024PBF
₹238.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 360pF
- Ciss-Input Capacitance
- 570pF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 8.8A
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 280mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.231 g
Overview
The third generation power MOSFETs provide designers with an excellent combination of fast switching, rugged device design, low on-resistance, and cost-effectiveness. The DPAK package is designed for SMT using vapor phase, infrared, or wave soldering techniques. Straight lead versions (IRFU, SiHFU series) are available for through-hole mounting applications. In typical SMT applications, power dissipation levels up to 1.5 W can be achieved.
Key features
- Dynamic dV/dt rated
- Repetitive avalanche rated
- Surface mount (IRFR9024, SiHFR9024)
- Straight lead (IRFU9024, SiHFU9024)
- Tape and reel option available
- P-channel
- Fast switching
- RoHS compliant
- Halogen-free
- In stock
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFU9024NPBF#C163645Infineon · TO-251(IPAK) | Infineon | TO-251(IPAK) | 3,195 | ₹49.59 · 3,195 in stock | View |
 | CMU5941#C17702028Cmos · TO-251 | Cmos | TO-251 | 5 | ₹35.71 · 5 in stock | View |
 | IRFU5410PBF#C3032Infineon · TO-251(IPAK) | Infineon | TO-251(IPAK) | 20 | ₹78.07 · 20 in stock | View |
 | CMU4932#C5371909Cmos · TO-251 | Cmos | TO-251 | 4 | ₹41.07 · 4 in stock | View |
 | CMU12P10S#C7470638Cmos · TO-251 | Cmos | TO-251 | 40 | ₹31.38 · 40 in stock | View |
