VBsemi ElecDatasheet (PDF)

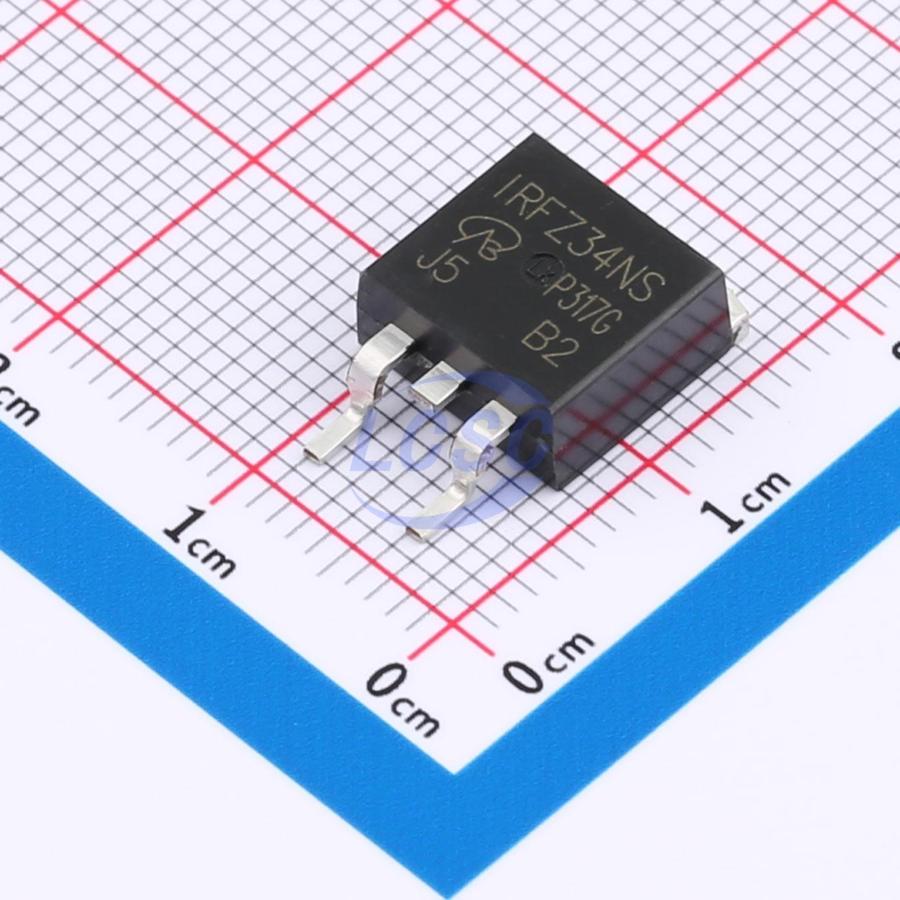

IRFZ34NSPBF-VB
N-Channel 60V 50A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 50A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFZ34NSPBF-VB
- Store part #
- C18795030
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C18795030
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.51 | ₹102.51 |
| 10+ | ₹83.81 | ₹838.10 |
| 30+ | ₹74.58 | ₹2,237.40 |
| 100+ | ₹58.61 | ₹5,861.00 |
| 500+ | ₹53.14 | ₹26,570.00 |
| 1,000+ | ₹50.21 | ₹50,210.00 |
1 × ₹102.51
₹102.51
excl. GST
₹120.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFZ34NSPBF-VB
₹102.51 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1nF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 32mΩ@10V;35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.255 g
Overview
Applications
- Synchronous Rectification
- Power Supply
Key features
- Halogen-free According to IEC 61249-2- Definition
- Surface Mount
- Available in Tape and Reel
- Dynamic dV/dt Rating
- Logic-Level Gate Drive
- Fast Switching
- Compliant to RoHS Directive 2002/95/EC
