InfineonDatasheet (PDF)

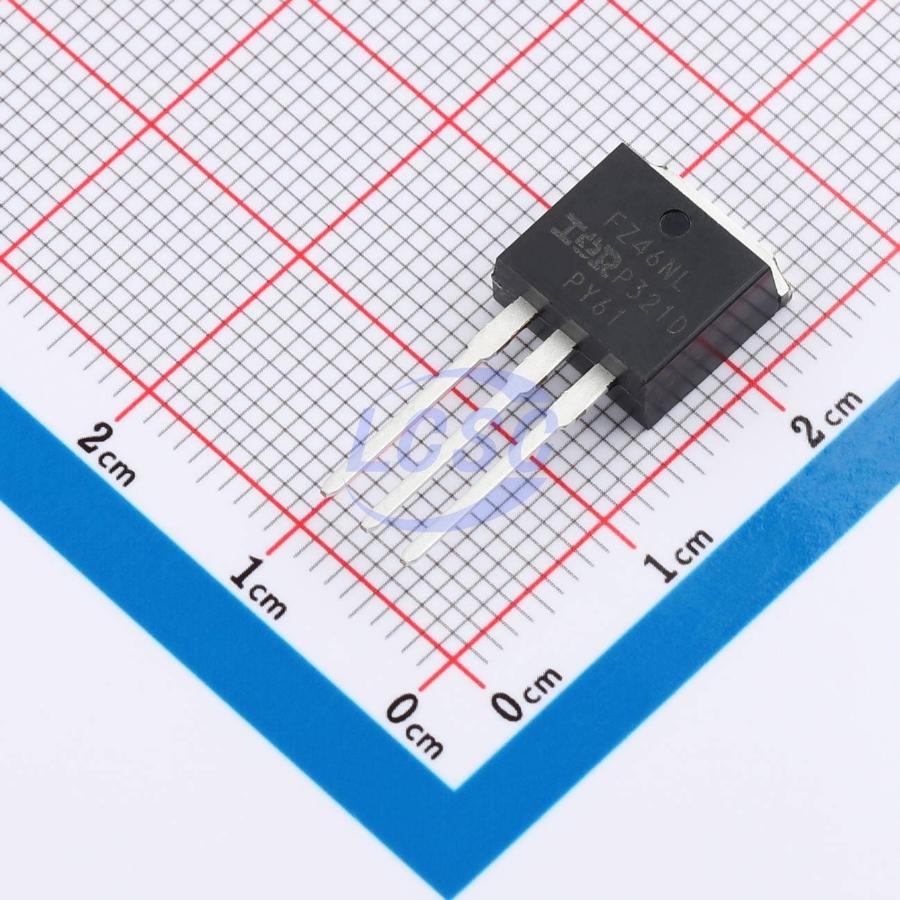

IRFZ46NLPBF
55V 53A 16.5mΩ@10V 1 N-channel D2PAK(TO-262) Single FETs, MOSFETs RoHS
D2PAK(TO-262)ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IRFZ46NLPBF
- Store part #
- C538081
- Package / case
- D2PAK(TO-262)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C538081
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.45 | ₹261.45 |
| 10+ | ₹220.31 | ₹2,203.10 |
| 50+ | ₹194.40 | ₹9,720.00 |
| 100+ | ₹167.85 | ₹16,785.00 |
| 500+ | ₹156.09 | ₹78,045.00 |
| 1,000+ | ₹150.86 | ₹1,50,860.00 |
1 × ₹261.45
₹261.45
excl. GST
₹308.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFZ46NLPBF
₹261.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 53A
- Ciss-Input Capacitance
- 1.696nF
- Pd - Power Dissipation
- 3.8W;107W
- RDS(on)
- 16.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.561 g
Overview
Advanced HEXFET power MOSFETs utilize advanced processing technology to achieve extremely low on-resistance per unit area of silicon. This advantage, combined with the well-known fast switching speed and robust device design of HEXFET power MOSFETs, provides designers with an extremely efficient and reliable device suitable for a wide range of applications. The D2Pak is a surface-mount power package capable of accommodating die sizes up to HEX-4. It offers the highest power handling capability and lowest possible on-resistance of any existing surface-mount package. Due to its low internal connection resistance, the D2Pak is suitable for high-current applications and can dissipate up to 2.0W of power in typical surface-mount applications. The through-hole version (IRFZ46NL) is suitable for low-profile applications.
Key features
- Advanced process technology
- Surface mount (IRFZ46NS)
- Slim through-hole (IRFZ46NL)
- 175°C operating temperature
- Fast switching
- Fully avalanche rated
- Lead-free
