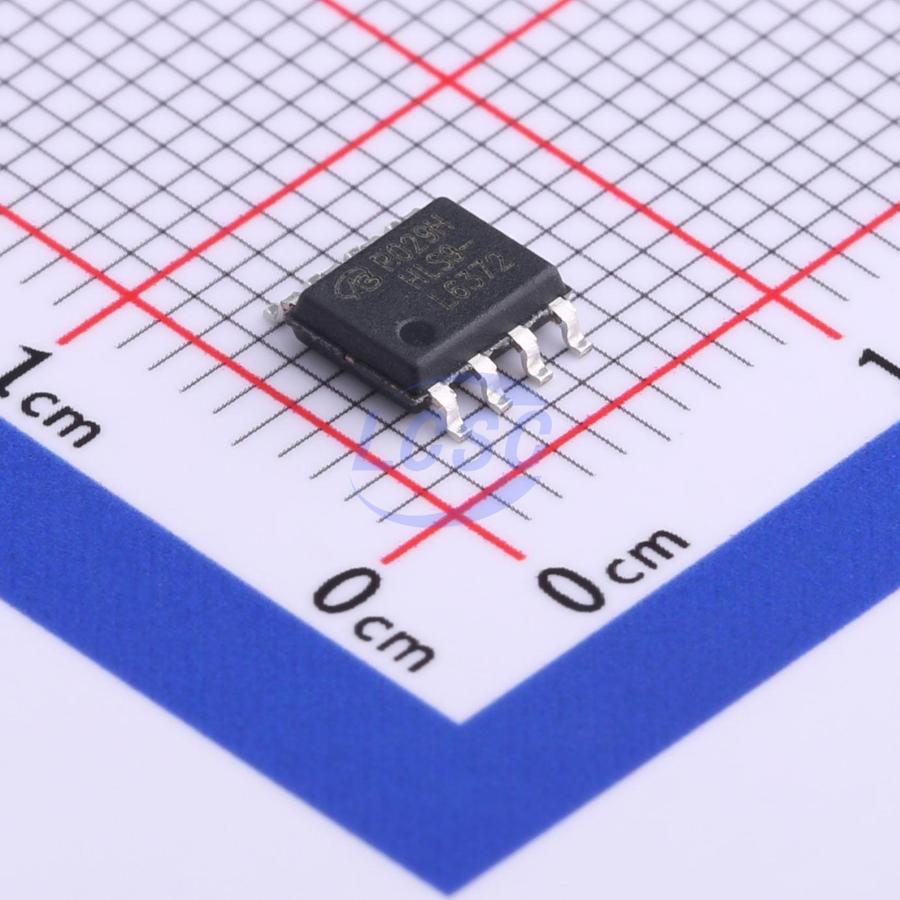

IRL6372TR-VB
N-Channel Array 30V 8.5A 3.1W Surface Mount SO-8
SO-8RoHSSold out at source
MOSFET N-CH ARR 30V 8.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRL6372TR-VB
- Store part #
- C878952
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C878952
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.94 | ₹73.94 |
| 10+ | ₹60.08 | ₹600.80 |
| 30+ | ₹53.14 | ₹1,594.20 |
| 100+ | ₹46.42 | ₹4,642.00 |
| 500+ | ₹42.23 | ₹21,115.00 |
| 1,000+ | ₹40.13 | ₹40,130.00 |
1 × ₹73.94
₹73.94
excl. GST
₹87.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRL6372TR-VB
₹73.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 140pF
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.5A
- Reverse Transfer Capacitance (Crss)
- 86pF
- RDS(on)
- 16mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 14.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.133 g
Overview
Applications
- Notebook System Power
- Low Current DC/DC
Key features
- TrenchFET Power MOSFET
- 100 % Rg Tested
- 100 % UIS Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF6372TRPBF-VB#C19188090VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹51.89 · 20 in stock | View |
 | AM4910N-T1-PF-VB#C19190098VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹52.93 · 50 in stock | View |
 | 150N03-VB#C20417590VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹50.84 · 50 in stock | View |
 | SI4214DY-T1-GE3-VB#C22389070VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹50.84 · 20 in stock | View |
 | 200N03-VB#C22389816VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹50.84 · 20 in stock | View |
