VBsemi ElecDatasheet (PDF)

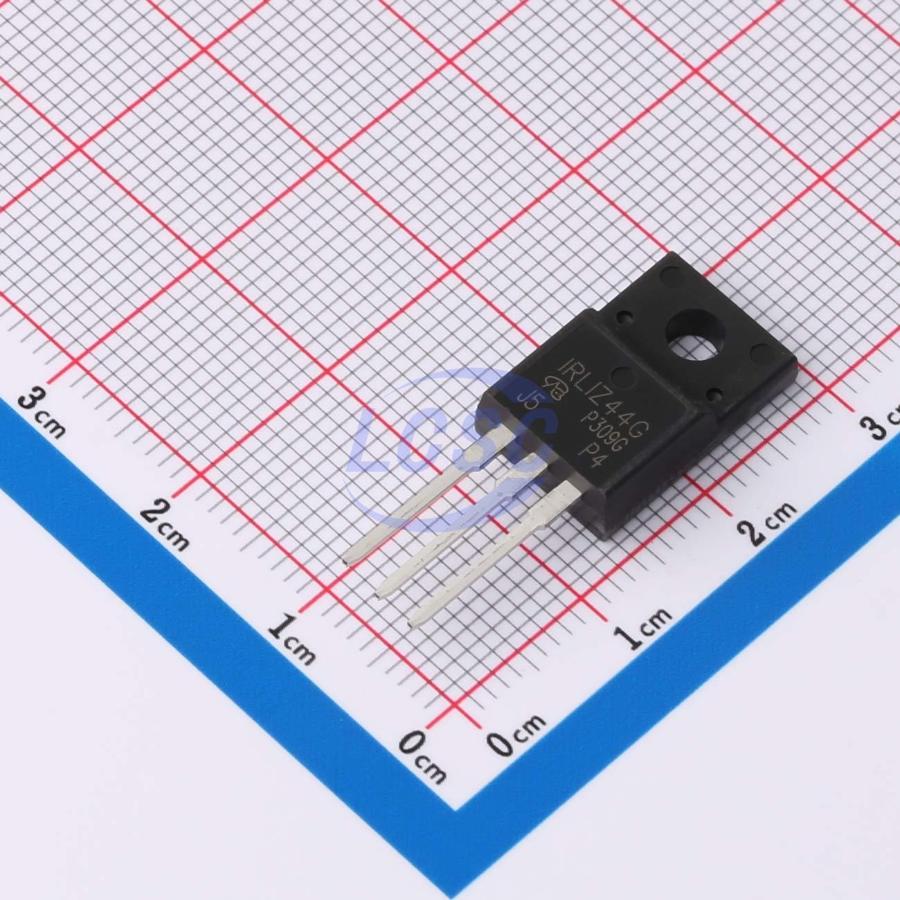

IRLIZ44GPBF-VB
N-Channel 60V 30A 52W Through Hole TO-220F
TO-220FROHS CompliantActive
MOSFET N-CH 60V 30A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLIZ44GPBF-VB
- Store part #
- C7524962
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7524962
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.05 | ₹75.05 |
| 10+ | ₹61.08 | ₹610.80 |
| 50+ | ₹50.91 | ₹2,545.50 |
| 100+ | ₹43.92 | ₹4,392.00 |
| 500+ | ₹39.73 | ₹19,865.00 |
| 1,000+ | ₹37.53 | ₹37,530.00 |
1 × ₹75.05
₹75.05
excl. GST
₹88.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRLIZ44GPBF-VB
₹75.05 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 100pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 95nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.45 g
Overview
Applications
- Load switch
Key features
- Isolated Package
- High Voltage Isolation = 2.5 kV_RMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFIZ24GPBF-VB#C5444631VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 18 | ₹78.33 · 18 in stock | View |
 | TK30A06J3-VB#C693222VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹71.06 · 6 in stock | View |
 | IRLIZ34NPBF-VB#C7429054VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | On request | ₹81.05 · 0 in stock | View |
 | IRLIZ14GPBF-VB#C7525079VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 12 | ₹79.49 · 12 in stock | View |
 | IRLIZ44NPBF-VB#C19188115VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹79.49 · 4 in stock | View |
