VBsemi ElecDatasheet (PDF)

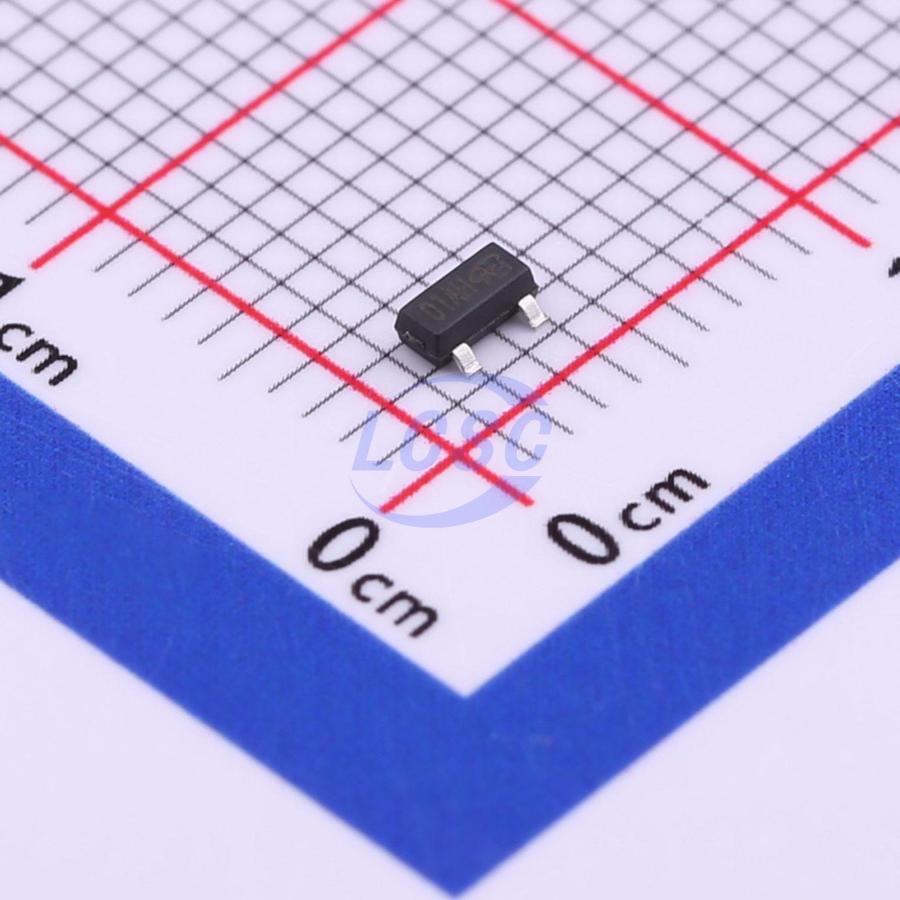

IRLML6401TRPBF-VB
P-Channel 20V 4A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLML6401TRPBF-VB
- Store part #
- C558179
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C558179
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.70 | ₹117.00 |
| 100+ | ₹9.84 | ₹984.00 |
| 300+ | ₹8.92 | ₹2,676.00 |
| 3,000+ | ₹6.27 | ₹18,810.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
| 9,000+ | ₹5.44 | ₹48,960.00 |
10 × ₹11.70
₹117.00
excl. GST
₹138.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRLML6401TRPBF-VB
₹117.00 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V;65mΩ@4.5V;80mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@4.5V;6.4nC@2.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.054 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
