InfineonDatasheet (PDF)

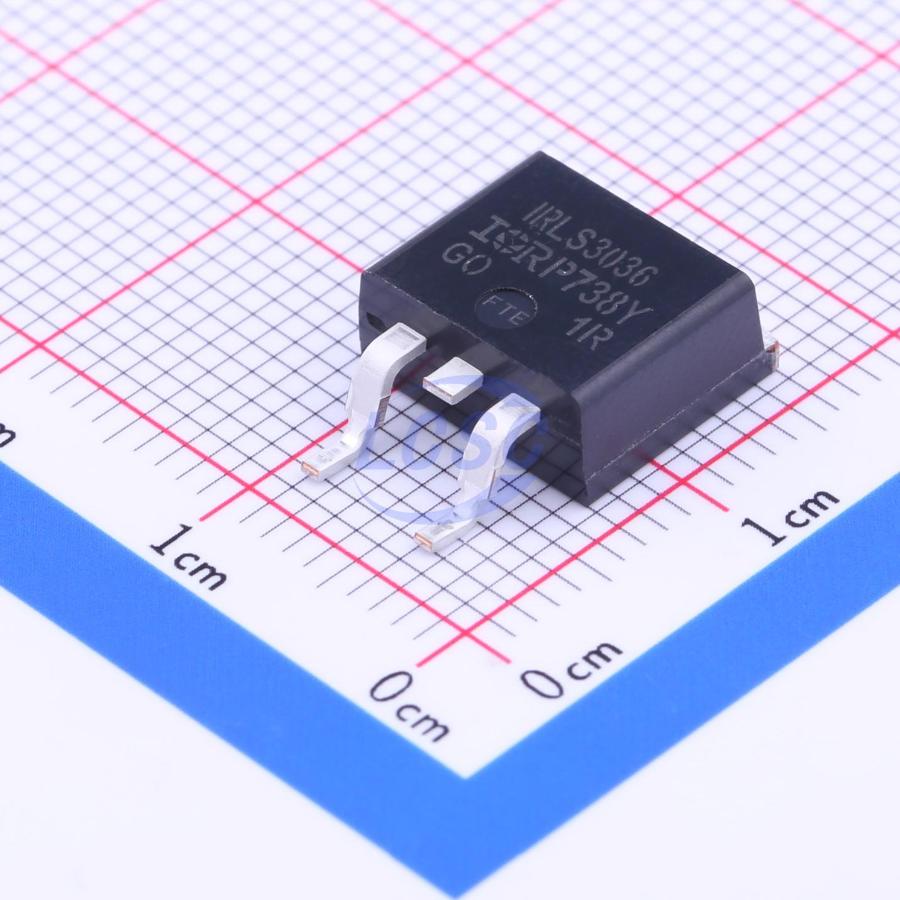

IRLS3036TRLPBF
60V 270A 380W 2.4mΩ@10V 1 N-channel TO-263-2 Single FETs, MOSFETs RoHS
TO-263-2ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IRLS3036TRLPBF
- Store part #
- C73577
- Package / case
- TO-263-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C73577
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹412.17 | ₹412.17 |
| 10+ | ₹356.23 | ₹3,562.30 |
| 30+ | ₹321.33 | ₹9,639.90 |
| 100+ | ₹285.33 | ₹28,533.00 |
| 500+ | ₹269.28 | ₹1,34,640.00 |
| 800+ | ₹262.14 | ₹2,09,712.00 |
1 × ₹412.17
₹412.17
excl. GST
₹486.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRLS3036TRLPBF
₹412.17 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 270A
- Ciss-Input Capacitance
- 11.21nF
- Pd - Power Dissipation
- 380W
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 140nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.1 g
Overview
Applications
- DC motor drive
- High-efficiency synchronous rectification in SMPS
- Uninterruptible power supply
- High-speed power switching
- Hard switching and high-frequency circuits
Key features
- Optimized for logic-level drive
- Ultra-low RDS(ON) at 4.5 V VGS
- Excellent R*Q performance at 4.5 V VGS
- Improved gate, avalanche, and dynamic dV/dt robustness
- Fully characterized capacitance and avalanche SOA
- Enhanced body diode dV/dt and dI/dt capability
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF3805S-VB#C19190276VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹262.64 · 3 in stock | View |
 | AUIRF3805STRR-VB#C20755201VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹264.07 · 20 in stock | View |
 | CSD19506KTT#C2870732TI · TO-263-2 | TI | TO-263-2 | 46 | ₹606.05 · 46 in stock | View |
 | BUK762R4-60E-VB#C19626811VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹205.86 · 1 in stock | View |
 | IPB019N06L3G-VB#C19626830VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹214.27 · 10 in stock | View |
