ISSI

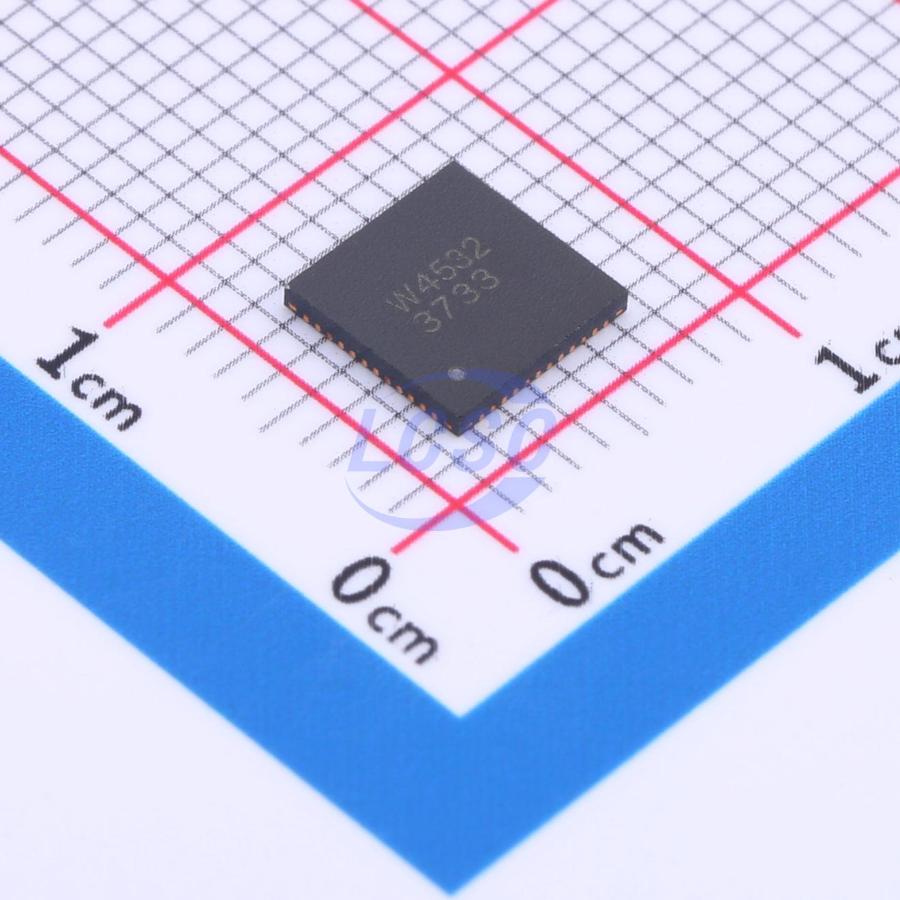

IS31FL3733-QFLS4-TR

1MHz 28 46mA 2.7V~5.5V QFN-48-EP(6x6) LED Drivers ICs

QFN-48-EP(6x6)RoHSActive

12×16 DOT MATRIX LED DRIVER WITH INDIVIDUAL AUTO BREATH FUNCTION

Manufacturer: ISSI
Manufacturer part #: IS31FL3733-QFLS4-TR
Store part #: C506251
Package / case: QFN-48-EP(6x6)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,735 in stock

#C506251

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
1+	₹279.35	₹279.35
10+	₹238.89	₹2,388.90
30+	₹213.64	₹6,409.20
100+	₹187.73	₹18,773.00
500+	₹175.96	₹87,980.00
1,000+	₹170.83	₹1,70,830.00

Quantity (min 1)

1 × ₹279.35

₹279.35

excl. GST

₹329.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

IS31FL3733-QFLS4-TR

₹279.35 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Short Circuit Protection;LED open-circuit protection
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Number of Channels: 28
Output Current: 46mA
Voltage - Input(DC): 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.31 g

Overview

The IS31FL3733 is a general purpose 12×16 LEDs matrix driver with 1/12 cycle rate. The device can be programmed via an I2C compatible interface. Each LED can be dimmed individually with 8-bit PWM data which allowing 256 steps of linear dimming. IS31FL3733 features 3 Auto Breathing Modes which are noted as ABM - 1, ABM - 2 and ABM - 3. For each Auto Breathing Mode, there are 4 timing characters which include current rising / holding / falling / off time and 3 loop characters which include Loop - Beginning / Loop - Ending / Loop - Times. Every LED can be configured to be any Auto Breathing Mode or NoBreathing Mode individually. Additionally each LED open and short state can be detected, IS31FL3733 store the open or short information in Open - Short Registers. The Open - Short Registers allowing MCU to read out via I2C compatible interface. Inform MCU whether there are LEDs open or short and the locations of open or short LEDs. The IS31FL3733 operates from 2.7V to 5.5V and features a very low shutdown and operational current. IS31FL3733 is available in QFN - 48 (6mm×6mm) and eTQFP - 48 packages. It operates from 2.7V to 5.5V over the temperature range of - 40°C to + 125°C.

Applications

Hand - held devices for LED display
Gaming device (Keyboard, Mouse etc.)
LED in white goods application

Key features

Supply voltage range: 2.7V to 5.5V
16 current source outputs for row control
12 switch current inputs for column scan control
Up to 192 LEDs (12×16) in dot matrix
Programmable 12×16 (64 RGBs) matrix size with de - ghost function
1MHz I2C - compatible interface
Selectable 3 Auto Breath Modes for each dot
Auto Breath Loop Features interrupt pin inform MCU Auto Breath Loop completed
Auto Breath offers 128 steps gamma current, interrupt and state look up registers
256 steps Global Current Setting
Individual on/off control
Individual 256 PWM control steps
Individual Auto Breath Mode select
Individual open and short error detect function
Cascade for synchronization of chips
QFN - 48 (6mm×6mm) and eTQFP - 48 packages
