InfineonDatasheet (PDF)

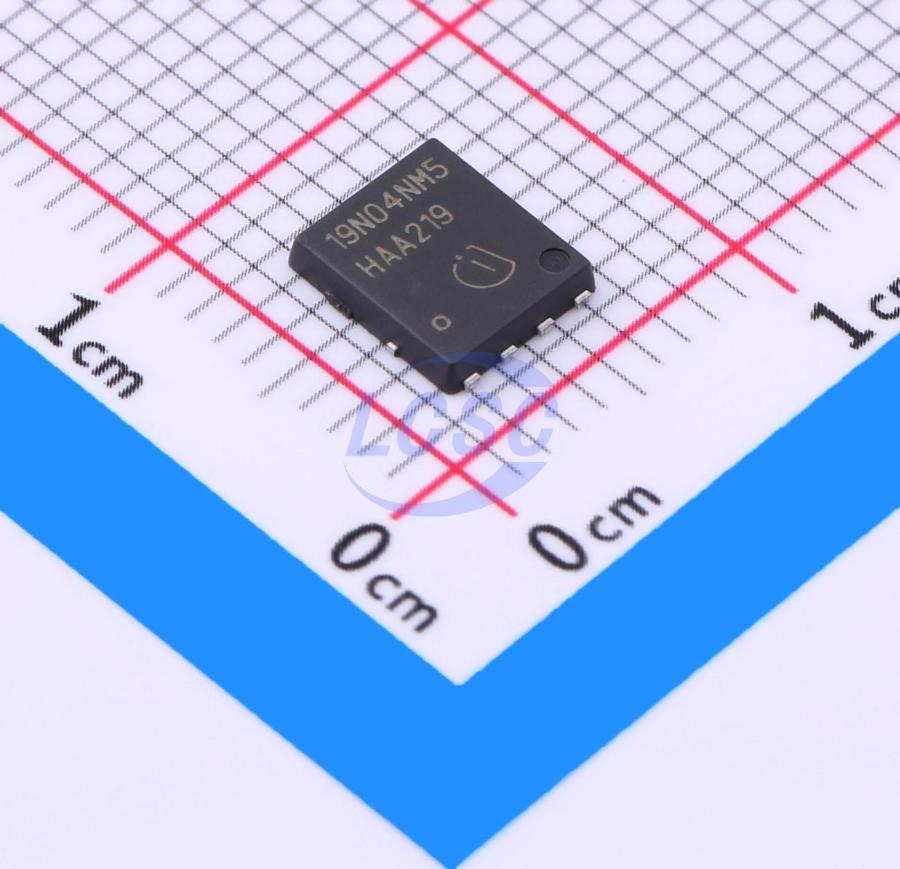

ISC019N04NM5ATMA1
40V 170A 100W 1.9mΩ@10V 1 N-channel N-Channel TDSON-8FL Single FETs, MOSFETs RoHS
TDSON-8FLROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- ISC019N04NM5ATMA1
- Store part #
- C3278633
- Package / case
- TDSON-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3278633
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.14 | ₹102.14 |
| 10+ | ₹83.23 | ₹832.30 |
| 30+ | ₹73.89 | ₹2,216.70 |
| 100+ | ₹61.93 | ₹6,193.00 |
| 500+ | ₹56.51 | ₹28,255.00 |
| 1,000+ | ₹53.67 | ₹53,670.00 |
1 × ₹102.14
₹102.14
excl. GST
₹120.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ISC019N04NM5ATMA1
₹102.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.4nF
- Current - Continuous Drain(Id)
- 170A
- Ciss-Input Capacitance
- 3.9nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Key features
- Battery-powered applications
- Low-voltage motor drive
- Ultra-low on-resistance RDS(ON)
- 100% avalanche tested
- Superior thermal resistance performance
- N-channel
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
- 175°C rated temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ISC017N04NM5ATMA1#C3278642Infineon · TDSON-8FL | Infineon | TDSON-8FL | 19 | ₹549.48 · 19 in stock | View |
 | IAUZN04S7L012ATMA1#C48017834Infineon · SON-8 | Infineon | SON-8 | 99 | ₹235.26 · 99 in stock | View |
| IAUZN04S7N013ATMA2#C43311528Infineon · PG-TSDSON-8-39 | Infineon | PG-TSDSON-8-39 | 32 | ₹159.82 · 32 in stock | View | |
 | ISC015N04NM5ATMA1#C3278640Infineon · TDSON-8FL | Infineon | TDSON-8FL | 34 | ₹193.42 · 34 in stock | View |
 | BSC014N04LSI#C2934854Infineon · TDSON-8FL | Infineon | TDSON-8FL | 746 | ₹261.27 · 746 in stock | View |
