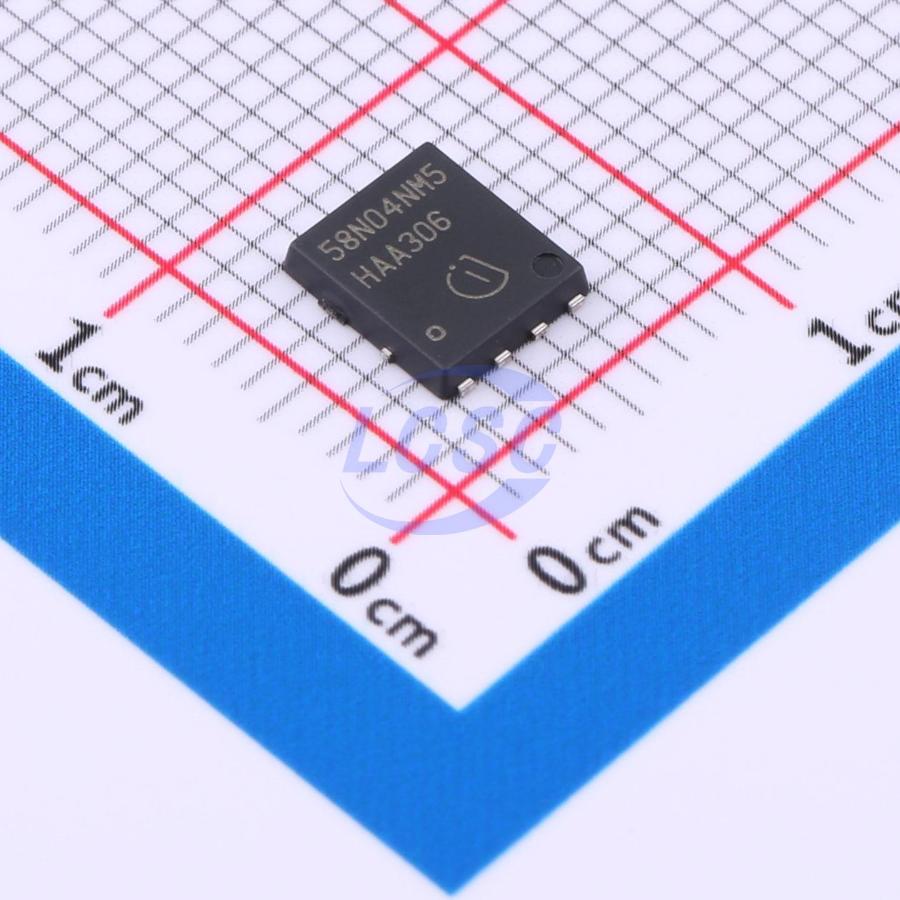

ISC058N04NM5ATMA1
N-Channel 40V 63A 42W Surface Mount TSON-8
TSON-8ROHS3 CompliantActive
MOSFET N-CH 40V 63A TSON-8
- Manufacturer
- Infineon
- Manufacturer part #
- ISC058N04NM5ATMA1
- Store part #
- C6577534
- Package / case
- TSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C6577534
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.55 | ₹102.55 |
| 10+ | ₹81.85 | ₹818.50 |
| 30+ | ₹71.63 | ₹2,148.90 |
| 100+ | ₹61.61 | ₹6,161.00 |
| 500+ | ₹55.51 | ₹27,755.00 |
| 1,000+ | ₹52.26 | ₹52,260.00 |
1 × ₹102.55
₹102.55
excl. GST
₹121.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ISC058N04NM5ATMA1
₹102.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 63A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 52pF
- RDS(on)
- 5.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC
- Gate Threshold Voltage (Vgs(th))
- 3.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.385 g
Overview
Key features
- Battery powered application
- LV motor drives
- Very low on-resistance RDS(on)
- 100% avalanche tested
- Superior thermal resistance
- N-channel
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
- 175 °C rated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC066N06NS#C3278728Infineon · TDSON-8 | Infineon | TDSON-8 | 2,434 | ₹144.84 · 2,434 in stock | View |
 | BSZ068N06NSATMA1#C3279314Infineon · TSDSON-8 | Infineon | TSDSON-8 | 47 | ₹158.18 · 47 in stock | View |
| IAUCN04S7L053DATMA1#C32162449Infineon · PG-TDSON-8-61 | Infineon | PG-TDSON-8-61 | 85 | ₹273.19 · 85 in stock | View | |
 | ISC060N10NM6ATMA1#C3288847Infineon · TDSON-8FL | Infineon | TDSON-8FL | 24 | ₹304.51 · 24 in stock | View |
 | ISC046N04NM5ATMA1#C3288849Infineon · TDSON-8FL | Infineon | TDSON-8FL | 46 | ₹112.77 · 46 in stock | View |
