InfineonDatasheet (PDF)

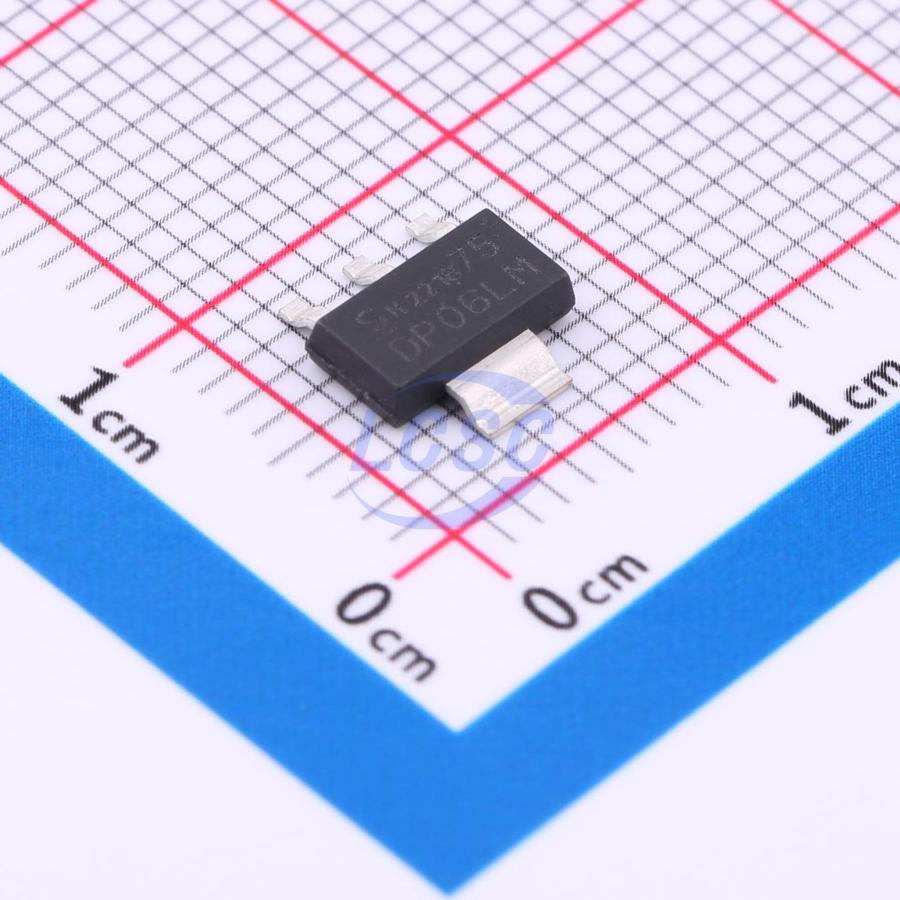

ISP75DP06LM
4.2W 60V 1.1A 750mΩ@10V 1 P-Channel P-Channel SOT-223-4 Single FETs, MOSFETs RoHS
SOT-223-4ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- ISP75DP06LM
- Store part #
- C538457
- Package / case
- SOT-223-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C538457
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.38 | ₹141.90 |
| 50+ | ₹27.76 | ₹1,388.00 |
| 150+ | ₹27.35 | ₹4,102.50 |
| 500+ | ₹26.94 | ₹13,470.00 |
5 × ₹28.38
₹141.90
excl. GST
₹167.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ISP75DP06LM
₹141.90 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 19pF
- Ciss-Input Capacitance
- 120pF
- Pd - Power Dissipation
- 4.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 1.1A
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Overview
Key features
- P-Channel
- Ultra-low on-resistance RDS(on) at VGS = 4.5 V
- 100% avalanche tested
- Logic level
- Enhancement mode
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ISP25DP06NM#C538451Infineon · SOT-223 | Infineon | SOT-223 | 738 | ₹77.50 · 738 in stock | View |
 | ZXMP7A17GTA#C150741DIODES · SOT-223 | DIODES | SOT-223 | 620 | ₹89.47 · 620 in stock | View |
 | ZXMP6A17GQTA#C461144DIODES · SOT-223 | DIODES | SOT-223 | 183 | ₹72.33 · 183 in stock | View |
 | IRFL9014TRPBF-VB#C558160VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 139 | ₹91.88 · 139 in stock | View |
| PMT200EPEX-VB#C52148597VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 5 | ₹82.73 · 5 in stock | View | |
