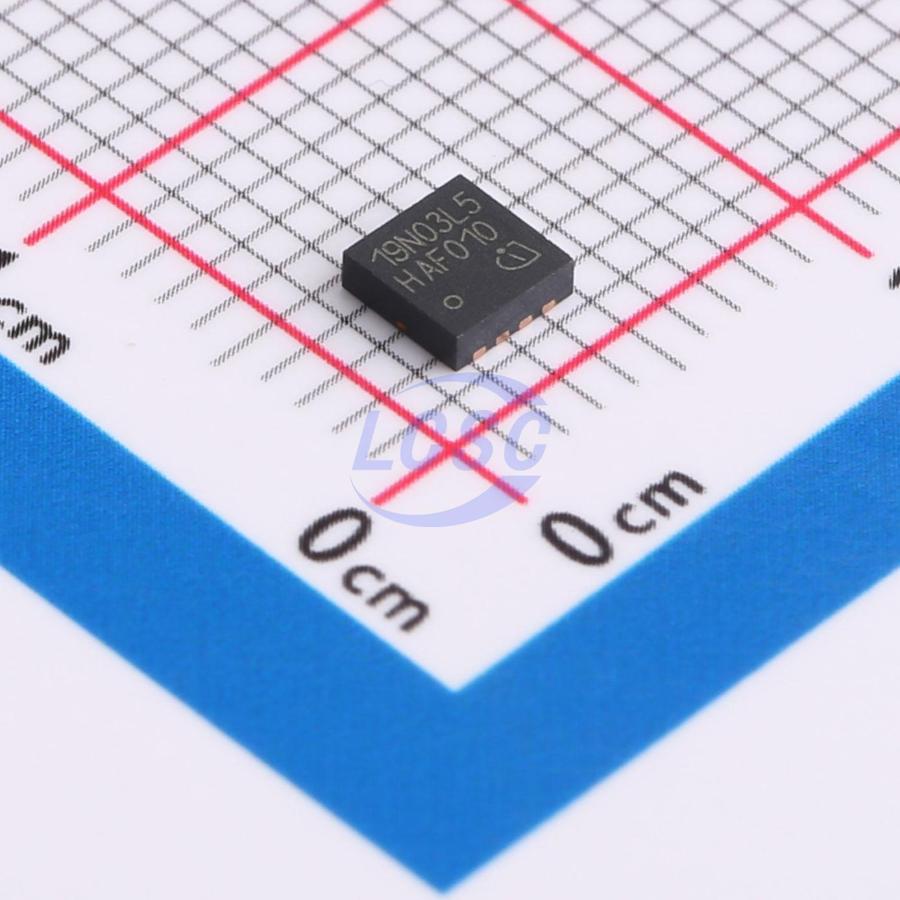

ISZ019N03L5SATMA1
N-Channel 30V 40A Surface Mount TSDSON-8FL
TSDSON-8FLROHS3 CompliantActive
MOSFET N-CH 30V 40A TSDSON-8FL
- Manufacturer
- Infineon
- Manufacturer part #
- ISZ019N03L5SATMA1
- Store part #
- C3289332
- Package / case
- TSDSON-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C3289332
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹234.24 | ₹234.24 |
| 10+ | ₹195.92 | ₹1,959.20 |
| 30+ | ₹174.81 | ₹5,244.30 |
| 100+ | ₹150.86 | ₹15,086.00 |
| 500+ | ₹140.20 | ₹70,100.00 |
| 1,000+ | ₹135.62 | ₹1,35,620.00 |
1 × ₹234.24
₹234.24
excl. GST
₹276.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ISZ019N03L5SATMA1
₹234.24 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 960pF
- Ciss-Input Capacitance
- 2.8nF
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 140pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.102 g
Overview
Applications
- General automotive applications.
Key features
- Optimized for high-performance buck converters (servers, VGA)
- Ultra-low QOSS for high-frequency SMPS
- Low switching figure-of-merit for high-frequency SMPS
- Excellent gate charge × RDS(on) product (figure-of-merit)
- Ultra-low RDS(on) at VGS = 4.5 V
- Superior thermal resistance
- N-channel
- Lead-free lead plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSZ019N03LS#C152374Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 2 | ₹224.98 · 2 in stock | View |
 | ISC019N03L5S#C3278709Infineon · TDSON-8 | Infineon | TDSON-8 | 2 | ₹119.04 · 2 in stock | View |
 | BSZ019N03LS#C5358566Infineon · TSDSON-8 | Infineon | TSDSON-8 | 4 | ₹205.00 · 4 in stock | View |
 | BSZ0901NS#C534685Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 13 | ₹197.75 · 13 in stock | View |
 | BSZ0901NSIATMA1#C3289329Infineon · TSDSON-8 | Infineon | TSDSON-8 | 34 | ₹142.69 · 34 in stock | View |
