InfineonDatasheet (PDF)

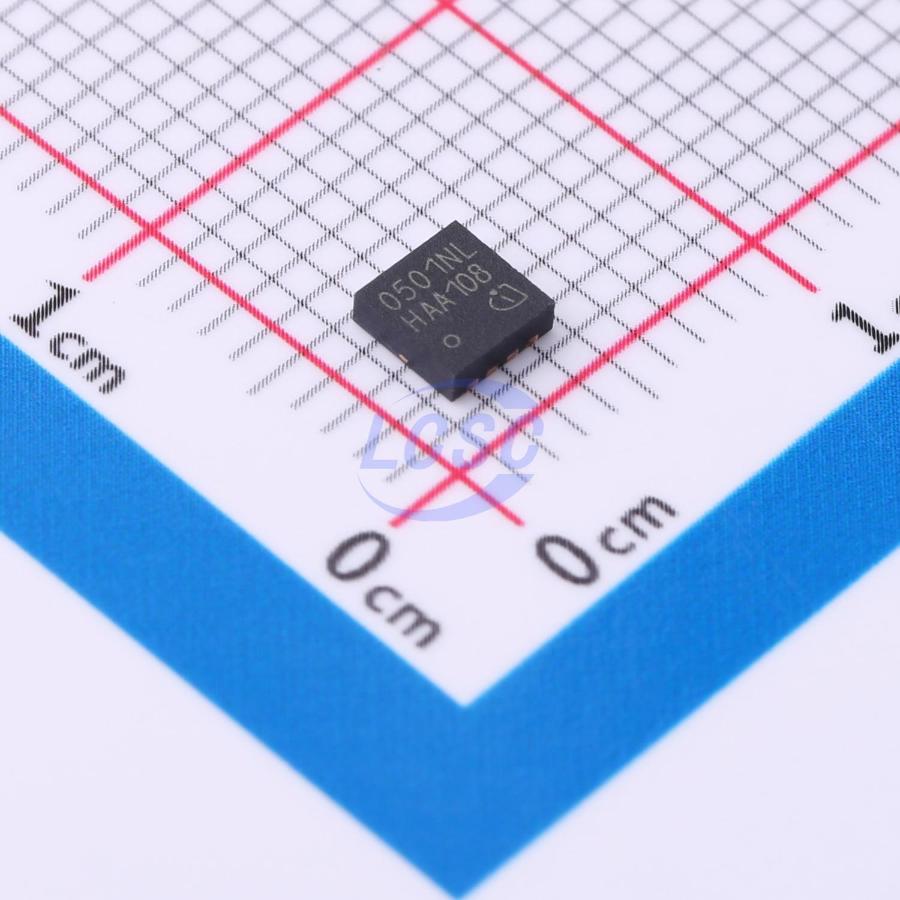

ISZ0501NLSATMA1
N-Channel 25V 40A 2.1W Surface Mount TSDSON-8FL
TSDSON-8FLROHS CompliantDiscontinued
MOSFET N-CH 25V 40A TSDSON-8FL
- Manufacturer
- Infineon
- Manufacturer part #
- ISZ0501NLSATMA1
- Store part #
- C5223642
- Package / case
- TSDSON-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5223642
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹288.52 | ₹288.52 |
| 10+ | ₹246.50 | ₹2,465.00 |
| 30+ | ₹220.28 | ₹6,608.40 |
| 100+ | ₹193.44 | ₹19,344.00 |
| 500+ | ₹181.34 | ₹90,670.00 |
| 1,000+ | ₹176.03 | ₹1,76,030.00 |
1 × ₹288.52
₹288.52
excl. GST
₹340.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ISZ0501NLSATMA1
₹288.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 910pF
- Pd - Power Dissipation
- 2.1W
- Drain to Source Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 3.1mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.3nC
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
Applications
- Video monitors
- Power management
Key features
- Optimized for charger applications
- Very low FOMQOSS for high frequency SMPS
- Low FOMQSW for high frequency SMPS
- Excellent gate charge × RDS(on) product (FOM)
- Very low on-resistance RDS(on) ⓧV05 = 4.5V
- 100% avalanche tested
- N-channel
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC0503NSIATMA1#C7086605Infineon · TDSON-8 | Infineon | TDSON-8 | 31 | ₹92.25 · 31 in stock | View |
 | BSZ036NE2LSATMA1#C6135710Infineon · TSDSON-8 | Infineon | TSDSON-8 | 9 | ₹63.08 · 9 in stock | View |
 | BSZ019N03LS#C5358566Infineon · TSDSON-8 | Infineon | TSDSON-8 | 4 | ₹205.00 · 4 in stock | View |
 | IAUC100N04S6L025ATMA1#C3288828Infineon · TDSON-8 | Infineon | TDSON-8 | On request | ₹143.37 · 0 in stock | View |
 | IAUC60N04S6L039ATMA1#C3288835Infineon · TDSON-8 | Infineon | TDSON-8 | 14 | ₹105.76 · 14 in stock | View |
