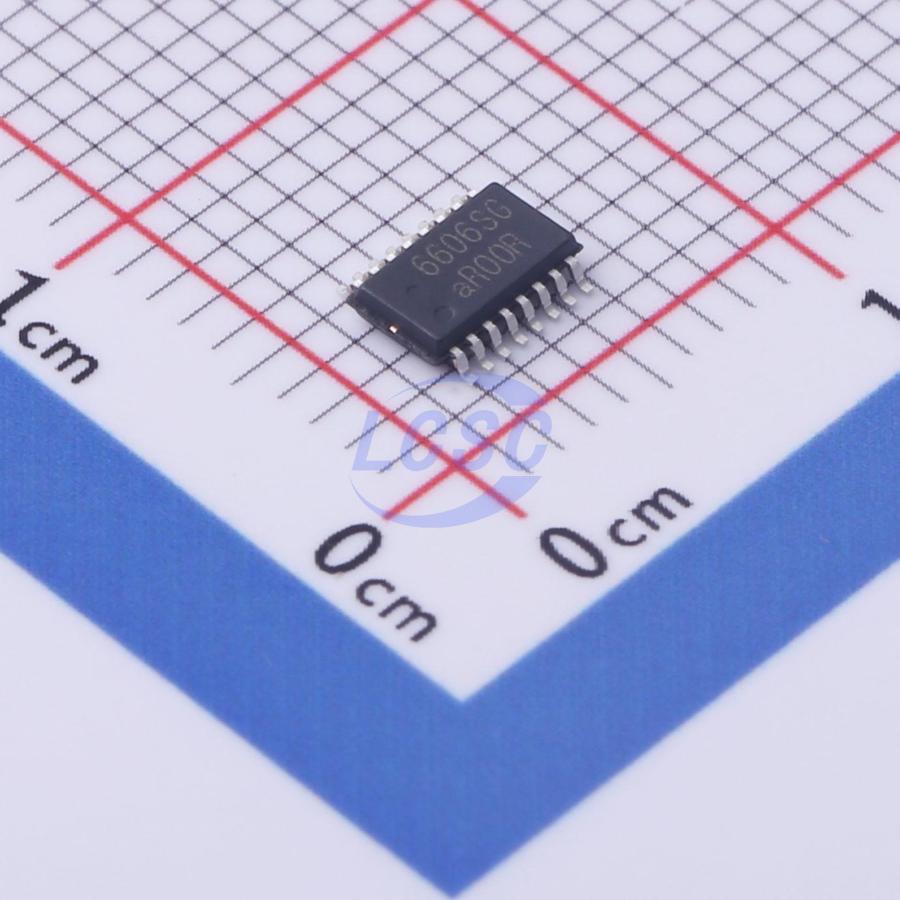

FITIPOWER

JD6606SP5

1 USB Charging IC CPC-16-L Interface Controllers RoHS

CPC-16-LROHS CompliantActive

JD6606S USB-PD 3.0 and HVDCP Controller

Manufacturer: FITIPOWER
Manufacturer part #: JD6606SP5
Store part #: C2836123
Package / case: CPC-16-L
Category: Interface Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,590 in stock

#C2836123

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹19.82	₹99.10
50+	₹17.52	₹876.00
150+	₹16.52	₹2,478.00
500+	₹14.63	₹7,315.00
2,500+	₹14.08	₹35,200.00
6,000+	₹13.75	₹82,500.00
12,000+	₹13.59	₹1,63,080.00
18,000+	₹13.47	₹2,42,460.00

Quantity (min 5, multiples of 5)

5 × ₹19.82

₹99.10

excl. GST

₹116.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 6,000 per reel

JD6606SP5

₹99.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Voltage - Supply: 3.2V~6.8V
Number of ports: 1
Applications Function: USB Charging IC
Quiescent Supply Current: 136uA
Current - Supply: 136uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.066 g

Overview

The JD6606S is an integrated USB Power Delivery 3.0 protocol controller. It complies with for HUAWEI Fast Charging Protocol (FCP), Super Charging Protocol (SCP), ACF Protocol and Qualcomm Quick Charge 2.0/3.0/3+ technologies designed for USB Type-C source side charging applications as power adapter, wall chargers, power strip and etc.

Applications

Wall-Adapter
Power Strip
USB Power Output Ports

Key features

USB PD 3.0 Certification, TID:3768
Supports USB Type-C and USB PD 3.0 -- 5V to 20V VBUS Source Only -- CC1/CC2 Source Terminator 3A -- Supports PDO Selectable Function
Supports HUAWEI FCP and SCP
Supports Qualcomm Quick Charge 2.0/3.0/3+
Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2
Supports USB DCP Applying 2.7V on D+ Line and 2.7V on D− Line
Constant-Voltage and Constant-Current Control
Multi-Ports Control (MPC) Application
Power Reduction Function for Multi-Ports
Over-Voltage Protection
VBUS Discharge Function
Over-Current Protection
CPC-16L and SOP-8 EP Packages
