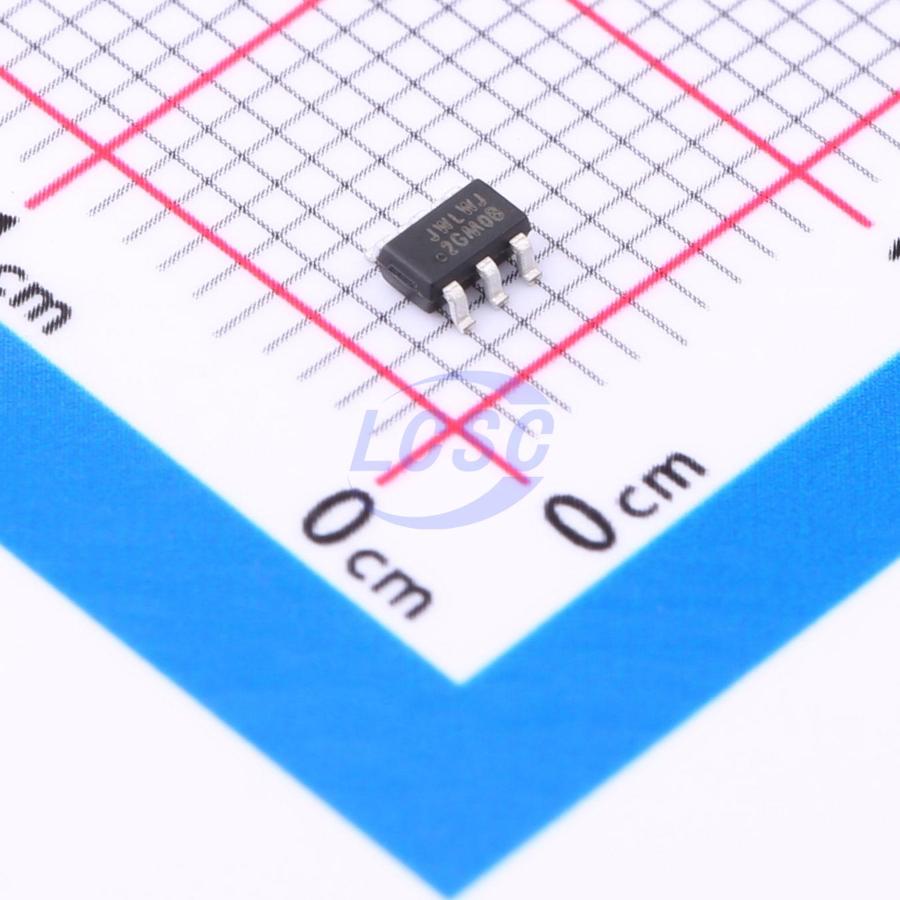

JoulWatt Tech

JW1121ASOTB#TRPBF

800kHz~1.2MHz Buck 1 1.5A 4.2V~20V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

1.5A, 20V Synchronous Buck LED Driver

Manufacturer: JoulWatt Tech
Manufacturer part #: JW1121ASOTB#TRPBF
Store part #: C5121631
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,930 in stock

#C5121631

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
5+	₹23.06	₹115.30
50+	₹18.14	₹907.00
150+	₹16.02	₹2,403.00
500+	₹13.38	₹6,690.00
3,000+	₹13.04	₹39,120.00
6,000+	₹12.33	₹73,980.00

Quantity (min 5, multiples of 5)

5 × ₹23.06

₹115.30

excl. GST

₹136.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

JW1121ASOTB#TRPBF

₹115.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Short Circuit Protection;Over-Temperature Protection (OTP);LED open-circuit protection
Frequency - Switching: 800kHz~1.2MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Buck
Number of Channels: 1
Output Current: 1.5A
Voltage - Input(DC): 4.2V~20V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

JW1121A is a current-mode monolithic step-down LED driver. It operates from an input voltage range of 4.2V to 20V and delivers 1.5A continuous output current via two integrated N-channel MOSFETs. The internal synchronous power switches provide high efficiency, eliminating the need for an external Schottky diode. Analog dimming mode and PWM-to-analog dimming mode are combined on a single control pin. JW1121A incorporates LED short-circuit protection, thermal protection, startup current runaway protection, and input undervoltage lockout (UVLO) to ensure robust operation. JW1121A is available in a 6-pin SOT23 package, offering a compact solution with minimal external components.
