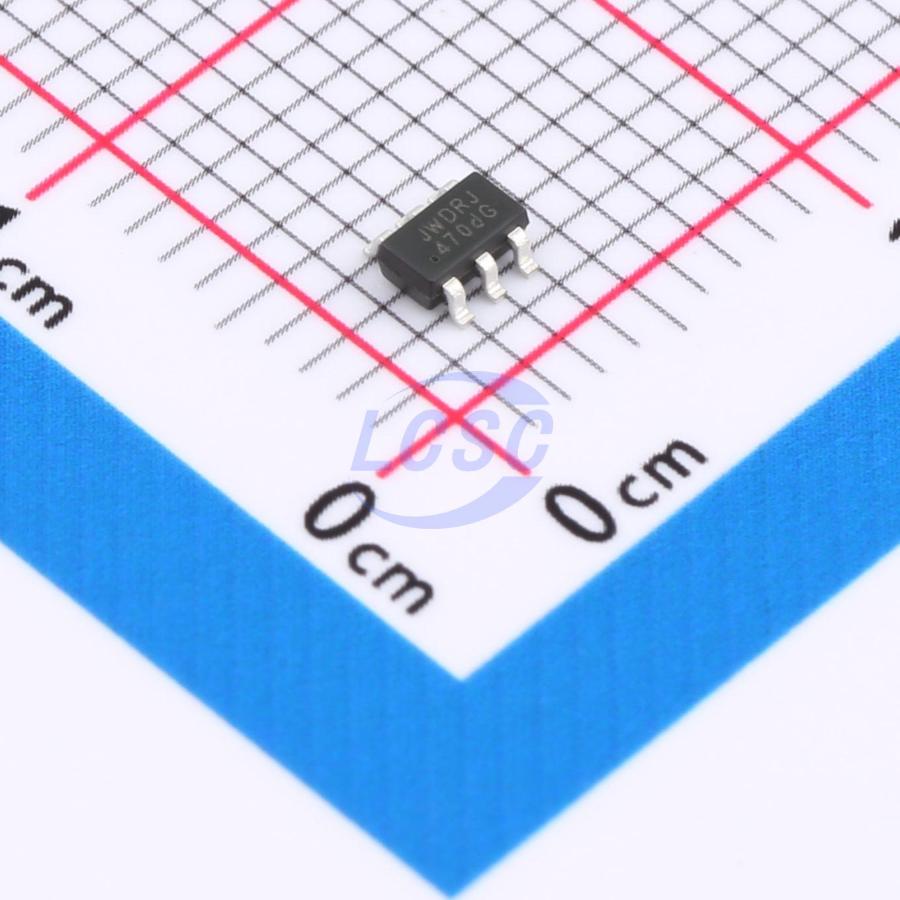

JoulWatt Tech

JW1123SOTB#TRPBF

600kHz Buck 2A 4.5V~28V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

2A, 28V Synchronous Buck LED Driver

Manufacturer: JoulWatt Tech
Manufacturer part #: JW1123SOTB#TRPBF
Store part #: C48982369
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,400 in stock

#C48982369

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹22.03	₹110.15
50+	₹17.42	₹871.00
150+	₹15.45	₹2,317.50
500+	₹12.99	₹6,495.00
3,000+	₹11.89	₹35,670.00
6,000+	₹11.23	₹67,380.00

Quantity (min 5, multiples of 5)

5 × ₹22.03

₹110.15

excl. GST

₹129.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

JW1123SOTB#TRPBF

₹110.15 for 5 + GST

Specifications

Features: Short Circuit Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 600kHz
Switch Tube (Built-In/External): Built-in
Topology: Buck
Output Current: 2A
Voltage - Input(DC): 4.5V~28V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.055 g

Overview

JW1123 is a current-mode monolithic step-down LED driver. It operates over an input voltage range of 4.5V to 28V and delivers 2A continuous output current via two integrated N-channel MOSFETs. The internal synchronous power switches enable high efficiency without requiring an external Schottky diode. It integrates a PWM-to-analog dimming mode to support dimmable LED lighting applications. The JW1123 ensures robustness through LED short-circuit protection, thermal protection, startup current runaway protection, and input undervoltage lockout. The device is offered in a 6-pin SOT23 package, providing a compact solution with minimal external components.
