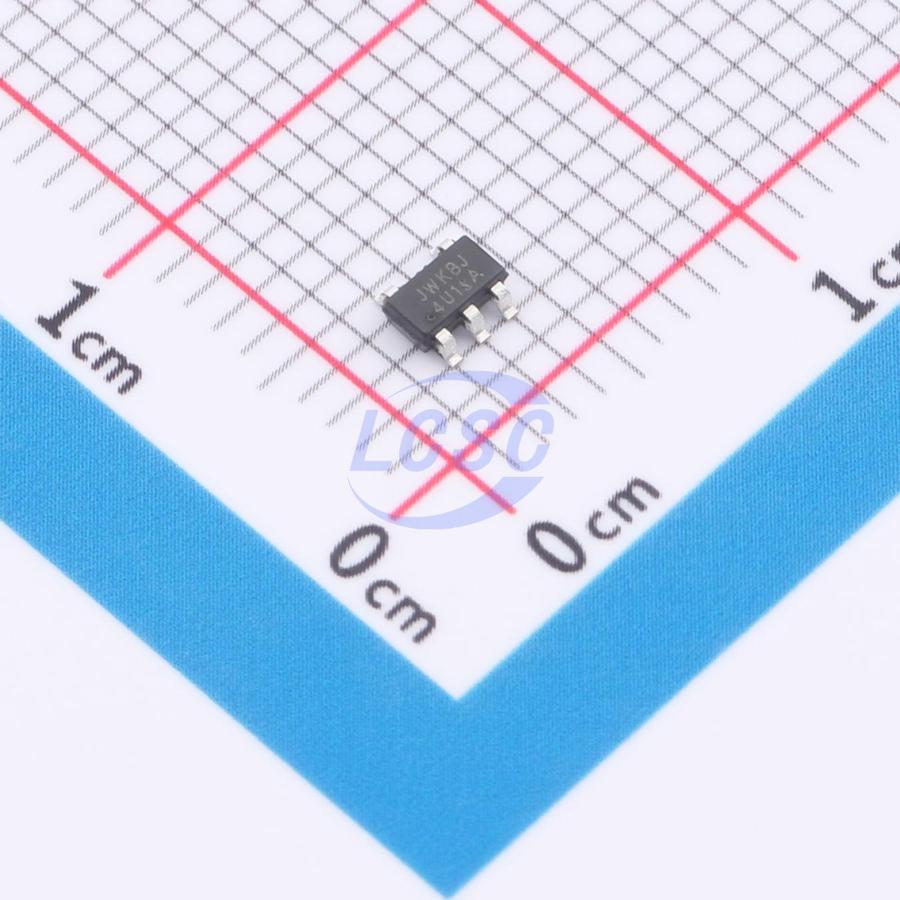

JW3510SOTA#TRPBF

The JW3510 is a micropower isolated flyback converter. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no third winding or opto-isolator for regulation. The output voltage can be programmed with a single external resistor. Besides, internal compensation and soft-start further reduce external component count. The JW3510 operates with an input voltage range of 3.0V to 42V and can deliver up to 6W of isolated output power. The primary-side can deliver 1.4A peak current with an internal integrated 65V N-Channel DMOS power switch. The JW3510 is designed with boundary mode, discontinuous mode and burst mode operation at different load to improve load regulation and maintain high efficiency while minimizing the output voltage ripple. JW3510 is available in the SOT23-5 package. The high level of integration results in a simple to use, low component count, and high efficiency application solution for isolated power delivery.

Applications

• Isolated Telecom
• Automotive
• Industrial
• Housekeeping Power Supplies
• Isolated Auxiliary Power Supplies
• Wide Input Voltage Range Micropower system

Key features

• 3.0V to 42V Operating Input Range
• 1.4A, 65V Internal DMOS Power Switch
• Up to 430KHz Operating Frequency
• Low Quiescent Current
• Boundary Mode Operation at Heavy Load
• Burst Mode Operation at Light Load
• VOUT Set with a Single External Resistor
• Minimum Load -0.5% (Typ) of Full Output
• No Transformer Third Winding or OptoIsolator Required for Regulation
• Internal Compensation and Soft-Start
• Input under voltage lockout
• Output Short-Circuit Protection
• Thermal Protection SOT23-5 Package
