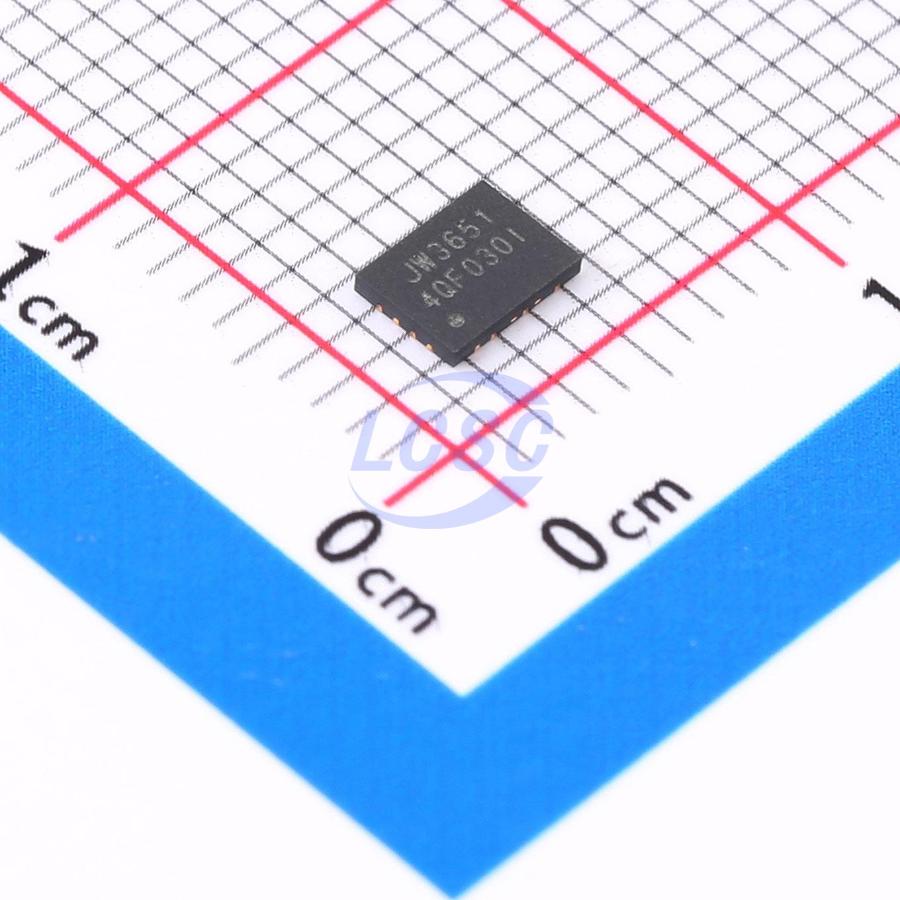

JoulWatt TechDatasheet (PDF)
JW3651QFNE#TRPBF
Buck-Boost 350kHz~550kHz Adjustable 2A 900mV~20V QFN-15(3x4) Voltage Regulators - DC DC Switching Regulators RoHS
QFN-15(3x4)ROHS CompliantActive
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW3651QFNE#TRPBF
- Store part #
- C5444670
- Package / case
- QFN-15(3x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,155 in stock
#C5444670
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.68 | ₹137.68 |
| 10+ | ₹111.45 | ₹1,114.50 |
| 30+ | ₹98.22 | ₹2,946.60 |
| 100+ | ₹85.21 | ₹8,521.00 |
| 500+ | ₹77.41 | ₹38,705.00 |
| 1,000+ | ₹73.51 | ₹73,510.00 |
1 × ₹137.68
₹137.68
excl. GST
₹162.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
JW3651QFNE#TRPBF
₹137.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Buck-Boost
- Frequency - Switching
- 350kHz~550kHz
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Overcurrent Protection;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck-Boost
- Operating Voltage
- 3V~21V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 900mV~20V
- Quiescent Current
- 60uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.118 g
Overview
JW3651 is a high-performance buck-boost converter with an output voltage programmable via external resistors over a range of 0.9V to 20V. The device uses a single-inductor architecture to achieve buck-boost conversion, operating when the input voltage is higher than, lower than, or equal to the output voltage, and supports 2-switch boost mode for higher efficiency. Integrated low Rds(on) MOSFETs reduce physical size, improve efficiency, and lower power dissipation. Constant-current control protects the device from overshoot under fault conditions. Built-in loop compensation simplifies the circuit and design. The device ensures robustness through UVLO, short-circuit protection, and thermal protection.
Applications
- Mobile power systems
- USB power supply
- Industrial applications
- Automotive systems
Key features
- Integrated low Rds(on) power MOSFET
- Wide VIN range: 3.0V~21V
- Wide VO range: 0.9V~20V
- Compatible with 4-switch buck-boost mode and 2-switch boost mode
- Fixed frequency 450kHz
- Programmable input and output current limit
- Output constant current control
- Quiescent current: <60μA
- Integrated output short-circuit protection (4-switch buck-boost mode)
- Integrated thermal protection
