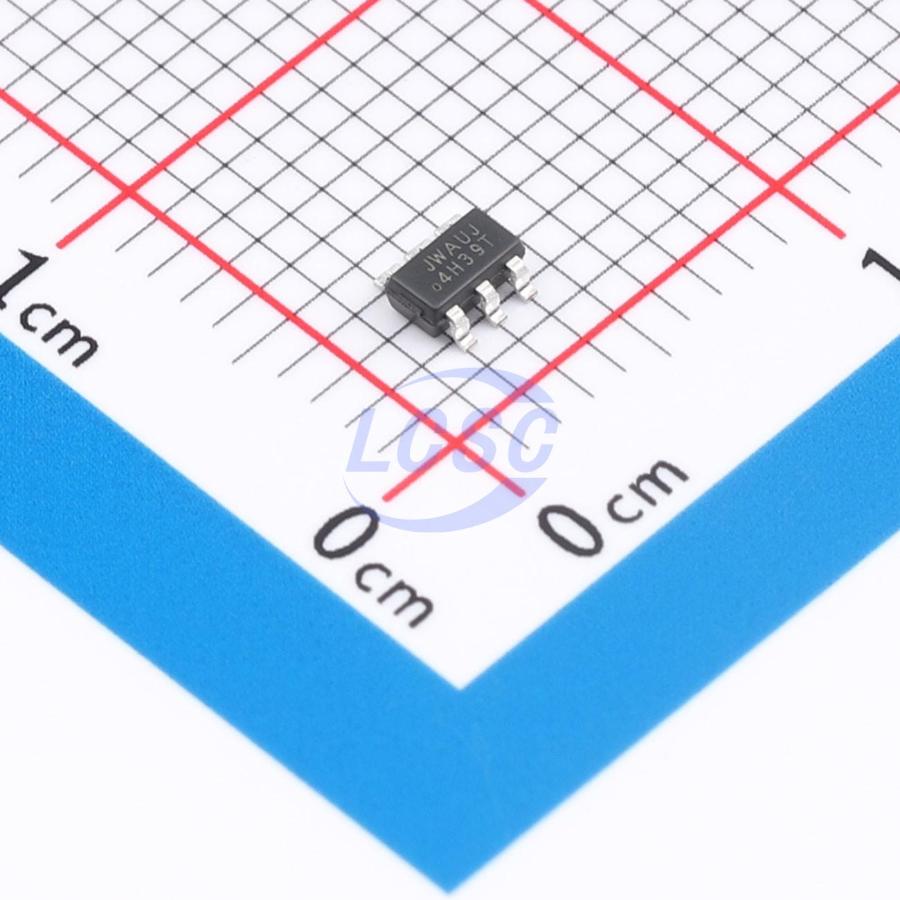

JW5222SOTB#TRPBF

JW5222 is a current-mode monolithic step-down switching regulator. It operates over an input voltage range of 2.5V to 6V, delivers 2.5A continuous output current, and integrates both P-channel and N-channel MOSFETs. The internal synchronous power switches provide high efficiency. At light loads, the regulator operates at reduced frequency to maintain high efficiency and minimize output ripple. Current-mode control provides tight load transient response and cycle-by-cycle current limiting. The JW5222 ensures robustness through hiccup output short-circuit protection, FB short-circuit protection, startup current runaway protection, input undervoltage lockout and hot-plug protection, and thermal protection. The JW5222 provides a power-good output indication, a feature available only in the SOT23-6 package. The JW5222 is offered in a 5-pin SOT23-5 or 6-pin SOT23-6 package, providing a compact solution with minimal external components.

Applications

• 5V or 3.3V point-of-load conversion
• Set-top boxes
• Telecom/networking systems
• Storage devices
• GPU/DDR power supply

Key features

• 2.5V to 6V operating input range
• Up to 2.5A output current
• Up to 94% peak efficiency
• High efficiency at light load
• Internal soft-start
• 1MHz switching frequency
• Input undervoltage lockout
• Hot-plug protection
• Short-circuit protection
• Thermal protection
• Power good indicator (available in SOT23-6 package)
• RoHS compliant and halogen-free
• Available in SOT23-5/SOT23-6 packages
