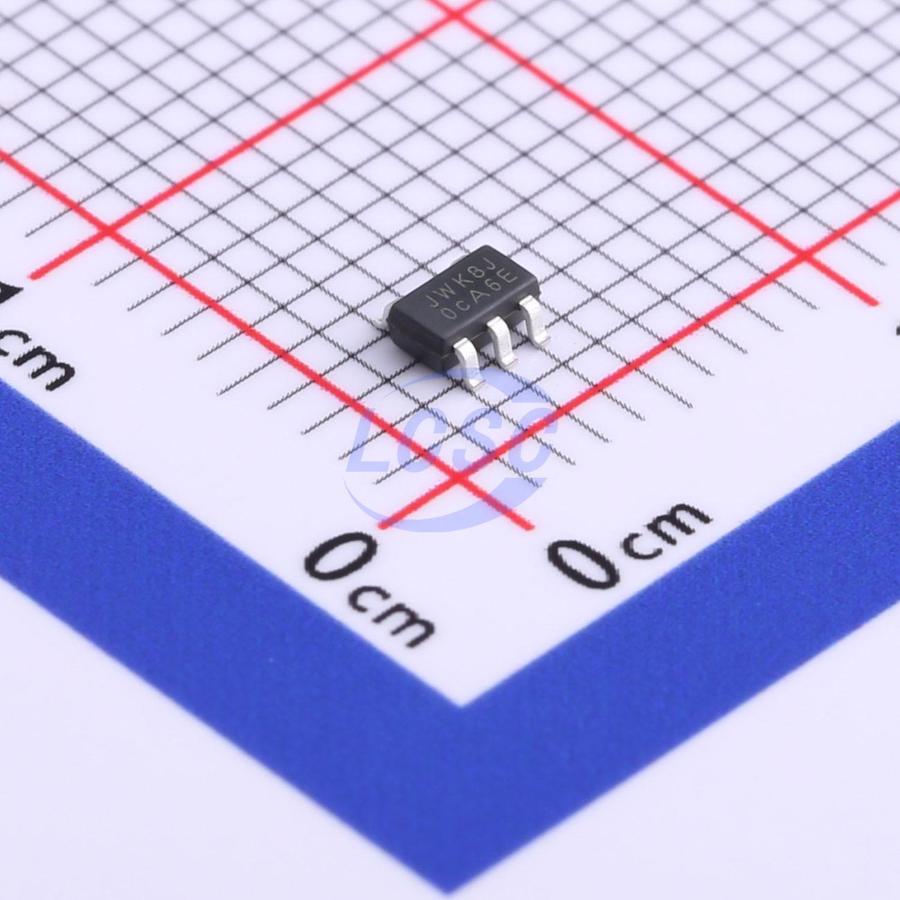

JW5250SSOTA#TRPBF

1.5MHz Step-down type Adjustable 600mV~6V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

1A Output Current, 6V Input, 1.5MHz Switching Frequency Synchronous Step-Down Converter

Manufacturer: JoulWatt Tech
Manufacturer part #: JW5250SSOTA#TRPBF
Store part #: C729472
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,600 in stock

#C729472

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
10+	₹7.29	₹72.90
100+	₹5.73	₹573.00
300+	₹4.95	₹1,485.00
3,000+	₹4.37	₹13,110.00
6,000+	₹3.89	₹23,340.00
9,000+	₹3.65	₹32,850.00

Quantity (min 10, multiples of 10)

10 × ₹7.29

₹72.90

excl. GST

₹86.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

JW5250SSOTA#TRPBF

₹72.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Function: Step-down type
Features: Hiccup current limiting;Protection latch;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~6V
Output Current: 1A
Quiescent Current: 50uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.049 g

Overview

The JW5250S is a current mode monolithic buck switching regulator. Operating with an input range of 2.5V - 6.0V, the JW5250S delivers 1A of continuous output current with integrated P-Channel and N-Channel MOSFETs. The internal synchronous power switches provide high efficiency. At light loads, the regulator operate in low frequency to maintain high efficiency and low output ripples. The JW5250S guarantees robustness with hiccup output short-circuit protection, FB short-circuit protection, start-up current run-away protection, input under voltage lockout and hot-plug in, and thermal protection. The JW5250S is available in 5-pin SOT23-5 and SOT563 package, which provides a compact solution with minimal external components.

Applications

5V or 3.3V Point of Load Conversion
Set Top Boxes
Telecom/Networking Systems
Storage Equipment
GPU/DDR Power Supply

Key features

2.5V to 6.0V operating input range
Up to 1A output current
Up to 94% peak efficiency
Internal Soft-Start
1.5MHz switching frequency
Input under voltage lockout
Hot-plug in protection
Short circuit protection
Thermal protection
Available in SOT23-5/SOT563 package
