JoulWatt TechDatasheet (PDF)

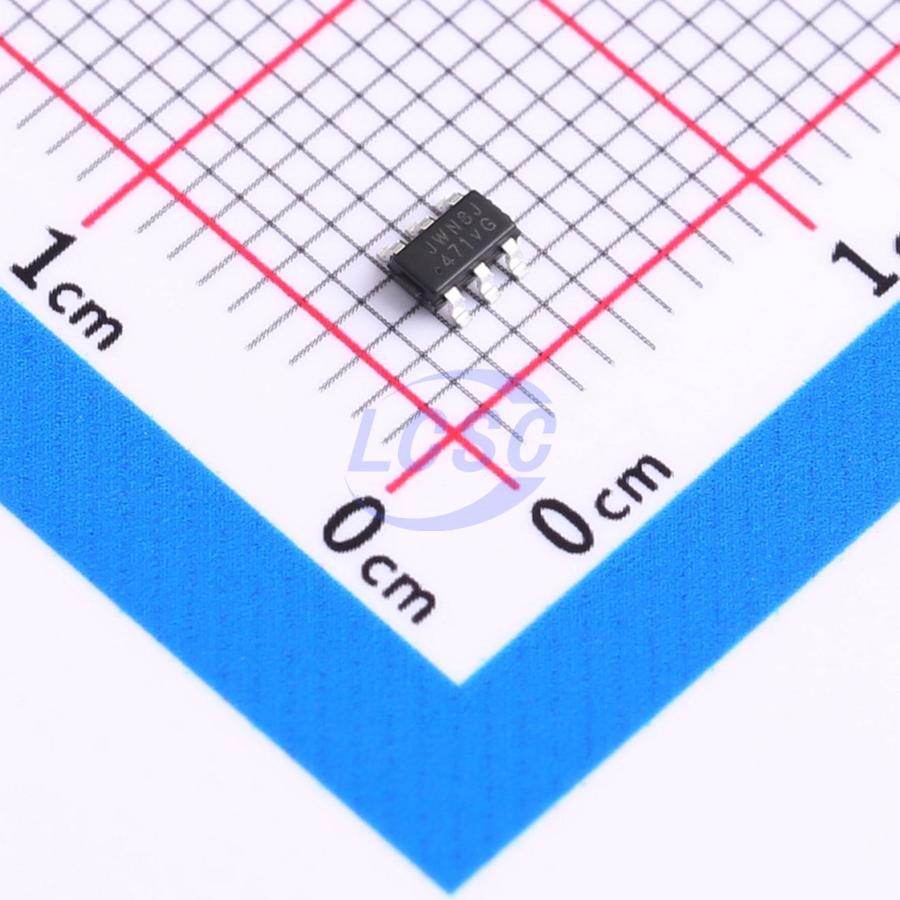

JW5352MSOTB#TR
Buck Switching Regulator IC Adjustable 1 Output 2A SOT-23-6
SOT-23-6Active
IC REG BUCK ADJ 2A SOT-23-6
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW5352MSOTB#TR
- Store part #
- C42379990
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,720 in stock
#C42379990
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.55 | ₹95.50 |
| 100+ | ₹7.57 | ₹757.00 |
| 300+ | ₹6.59 | ₹1,977.00 |
| 3,000+ | ₹5.85 | ₹17,550.00 |
| 6,000+ | ₹5.25 | ₹31,500.00 |
| 9,000+ | ₹4.95 | ₹44,550.00 |
10 × ₹9.55
₹95.50
excl. GST
₹112.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW5352MSOTB#TR
₹95.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 480kHz~720kHz
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 140uA
Packaging & compliance
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The JW5352 and JW5352M are monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 4.5V ~ 18Vz, JW5352 and JW5352M deliver 2A of continuous output current with two integrated N - Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5352 and JW5352M operate in low frequency to maintain high efficiency. JW5352 and JW5352M guarantee robustness with output short protection, thermal protection, current run - away protection and input under voltage lockout. JW5352 and JW5352M are available in SOT23 - 6 package, which provides a compact solution with minimal external components.
Applications
- Distributed Power Systems
- Networking Systems FPGA, DSP, ASIC Power Supplies
- Green Electronics/ Appliances Notebook Computers
Key features
- 4.5V to 18V operating input range 2A output current
- Up to 95% efficiency
- PFM at light load
- 600kHz switching frequency
- Internal soft - start
- Input under - voltage lockout
- Current run - away protection
- Output short protection
- Thermal protection
- Available in SOT23 - 6 package
