JoulWatt TechDatasheet (PDF)

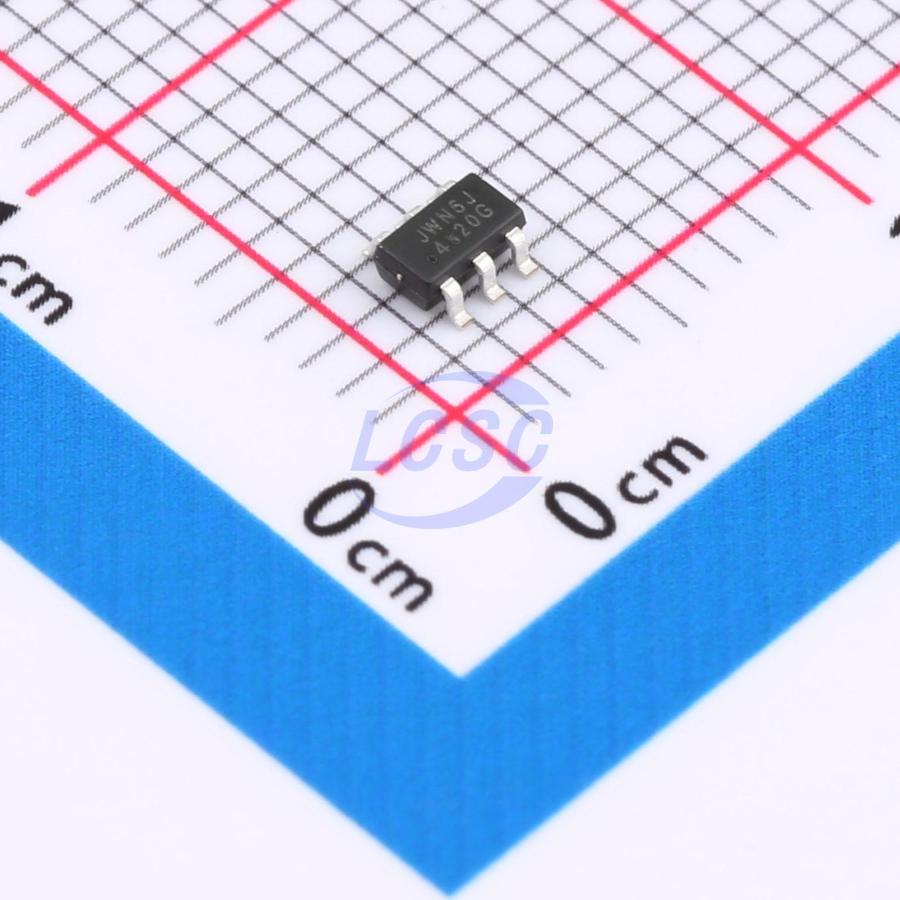

JW5359MSOTB#TR
Step-down type 600kHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW5359MSOTB#TR
- Store part #
- C42685544
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,610 in stock
#C42685544
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.75 | ₹97.50 |
| 100+ | ₹7.74 | ₹774.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.40 | ₹32,400.00 |
| 9,000+ | ₹5.09 | ₹45,810.00 |
10 × ₹9.75
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW5359MSOTB#TR
₹97.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Features
- Light load efficient mode;Overcurrent Protection;Hiccup current limiting
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
JW5359M and JW5359FM are synchronous buck switching regulators based on the I2 architecture with fast transient response capability. They operate over an input voltage range of 4.5V to 18V and deliver 2A continuous output current via two internally integrated N-channel MOSFETs. The internal synchronous power switches achieve high efficiency, eliminating the need for an external Schottky diode. Under light-load conditions, the JW5359M operates at reduced frequency to maintain high efficiency. These devices provide robustness through output short-circuit protection, thermal protection, current runaway protection, and input undervoltage lockout. Offered in a SOT23-6 package, they require minimal external components for a compact solution.
Applications
- Distributed power systems
- Network systems
- FPGA, DSP, ASIC power supplies
- Green electronics/appliances
- Notebook computers
Key features
- 4.5V to 18V operating input range
- 2A output current
- Up to 95% efficiency
- Light-load forced continuous conduction mode (JW5359FM)
- Light-load pulse frequency modulation mode (JW5359M)
- 600kHz switching frequency
- Internal soft-start
- Input undervoltage lockout
- Current runaway protection
- Output short-circuit protection
- Thermal protection
- SOT23-6 package
