JoulWatt TechDatasheet (PDF)

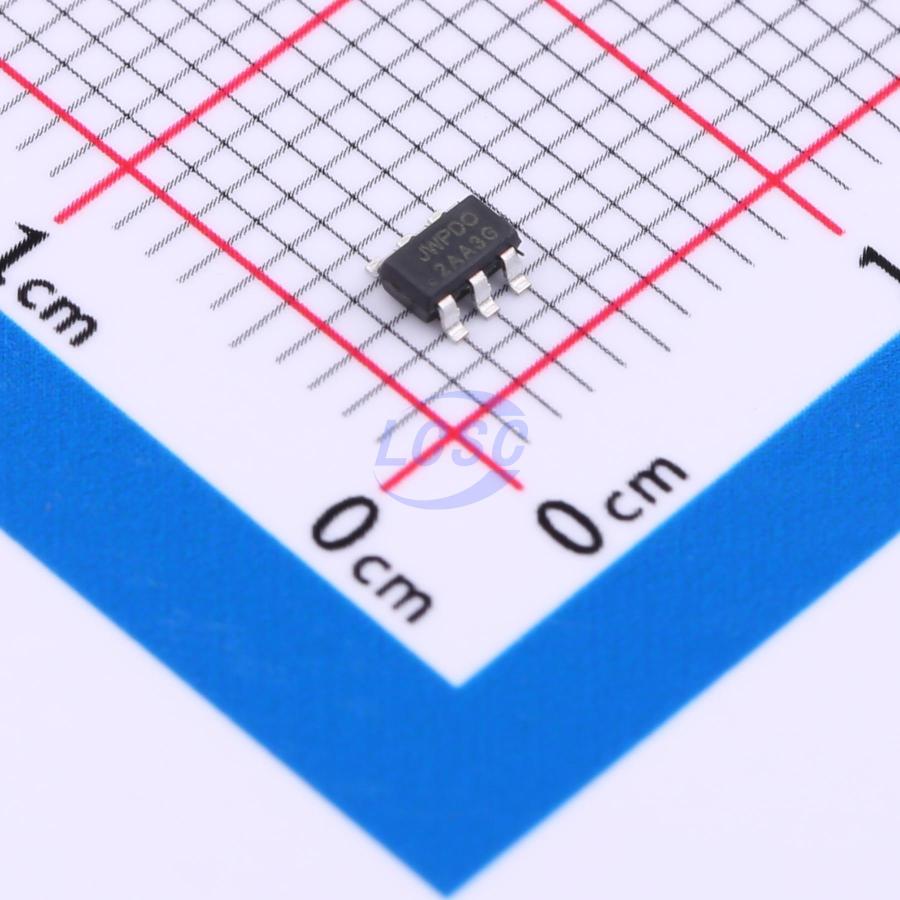

JW5361FMSOTB#TR
Step-down type 600kHz Adjustable 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V/3A Sync. Step-Down Converter
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW5361FMSOTB#TR
- Store part #
- C5121635
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,275 in stock
#C5121635
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.43 | ₹82.15 |
| 50+ | ₹12.97 | ₹648.50 |
| 150+ | ₹11.23 | ₹1,684.50 |
| 500+ | ₹9.94 | ₹4,970.00 |
| 3,000+ | ₹9.18 | ₹27,540.00 |
| 6,000+ | ₹8.65 | ₹51,900.00 |
5 × ₹16.43
₹82.15
excl. GST
₹96.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW5361FMSOTB#TR
₹82.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The JW5361, JW5361M, JW5361F and JW5361FM are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5361, JW5361M, JW5361F and JW5361FM deliver 3A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light load, JW5361 and JW5361M operate in low frequency to maintain high efficiency. JW5361, JW5361M, JW5361F and JW5361FM guarantee robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout. JW5361, JW5361M, JW5361F and JW5361FM are available in SOT23-6 package, which provides a compact solution with minimal external
Applications
- Distributed Power Systems
- Networking Systems
- FPGA, DSP, ASIC Power Supplies
- Green Electronics/ Appliances
- Notebook Computers
Key features
- 4.5V to 18V operating input range 3A output current
- Up to 95% efficiency
- FCCM at light load (JW5361F / JW5361FM)
- PFM at light load (JW5361 / JW5361M)
- 600kHz switching frequency
- Internal soft-start
- Input under-voltage lockout
- Current run-away protection
- Output short protection
- Thermal protection
- Available in SOT23-6 package
