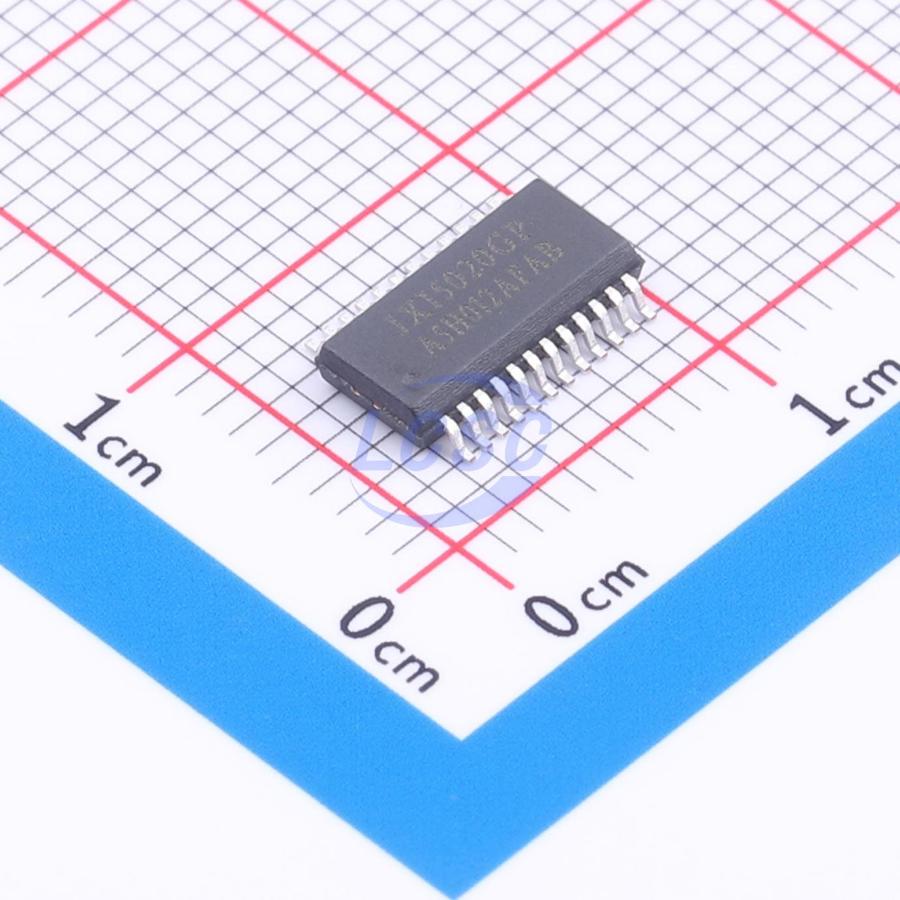

JXI5020GP-TD

JX15020 is a driver IC designed for LED display panels. It features a built-in CMOS shift register and latch function that converts serial input data into parallel output data format. The JX15020 provides 16 current sources capable of delivering 3~36mA constant current at each output port to drive LEDs. Multiple OUT driver channels can be short-circuited together to achieve higher current output, with minimal impact on output current when environmental conditions change. An external resistor of selectable resistance (TEXT) can be used to adjust the output current at each port of the JX15020, enabling precise control of LED luminance brightness. This makes it well suited for high-quality white balance display driver modules.

Applications

• Indoor/outdoor single, dual, and full-color (dynamic/static) LED displays
• Decorative lighting
• Energy-saving lighting

Key features

• 16 constant current output channels
• OUT port withstand voltage guaranteed up to 11V
• Output current unaffected by load voltage variation at output terminals
• Constant current range: 3~36mA@VDD=5V; 3~20mA@VDD=3.3V
• Highly accurate current output: channel-to-channel max error ≤±2.0%; chip-to-chip max error ≤±3.0%
• Output current for all 16 channels precisely configurable via external resistor adjustment
• Fast output current response: minimum pulse width = 35nS
• Data transfer rate up to 25MHz
• Schmitt trigger input characteristics
• Operating voltage: 3.3V~5V
• Package: JX15020GP/SsOP24 - 0.635(QsOP24)
• Package: JX15020GF/SOP24L300 - 1.00(SSOP24)
