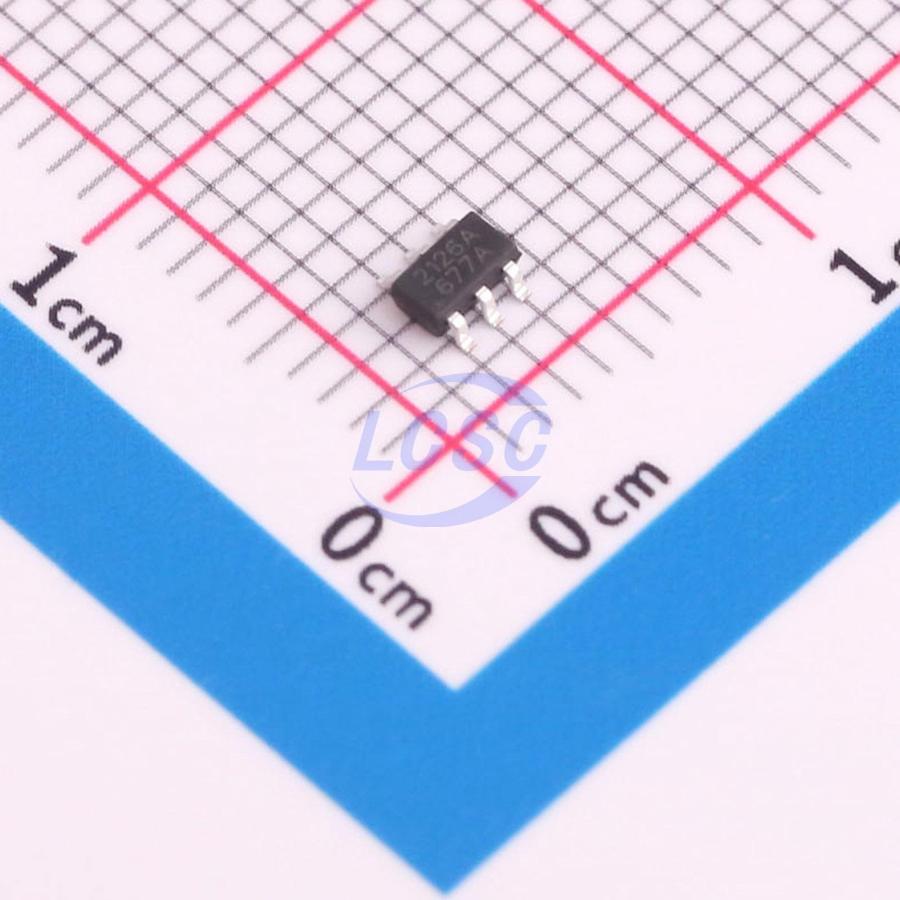

JingYang

JY2126AX

LED Driver IC 2 Output 300mA SOT-23-6

SOT-23-6ROHS CompliantActive

Dual-channel LED color temperature adjustment switch chip

Manufacturer: JingYang
Manufacturer part #: JY2126AX
Store part #: C5156725
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,075 in stock

#C5156725

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.98	₹109.90
50+	₹17.38	₹869.00
150+	₹15.41	₹2,311.50
500+	₹12.97	₹6,485.00
3,000+	₹11.87	₹35,610.00
6,000+	₹11.22	₹67,320.00

Quantity (min 5, multiples of 5)

5 × ₹21.98

₹109.90

excl. GST

₹129.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

JY2126AX

₹109.90 for 5 + GST

Specifications

Features: Over Voltage Protection
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+105℃
Number of Channels: 2
Output Current: 300mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

JY2126AX is a dual-channel LED color temperature switching control IC, suitable for isolated and non-isolated RC LED lighting systems. The chip requires minimal external components and offers a simple design. Users can adjust color temperature via continuous wall switch toggling. The chip employs a unique approach to overcome common issues found in MCU-based color temperature control systems — such as slow turn-on speed — while delivering high consistency in multi-power synchronous applications.

Applications

LED lighting
Switched color temperature tuning
Other LED control applications

Key features

Dual power switches integrated internally
Built-in debounce technology
Fast power-on internal recall circuit prevents LED overvoltage
Supports isolated, non-isolated, and RC step-down LED color temperature tuning applications
Simplified peripheral components, eliminates one reset capacitor, lower cost
Current switching technology
